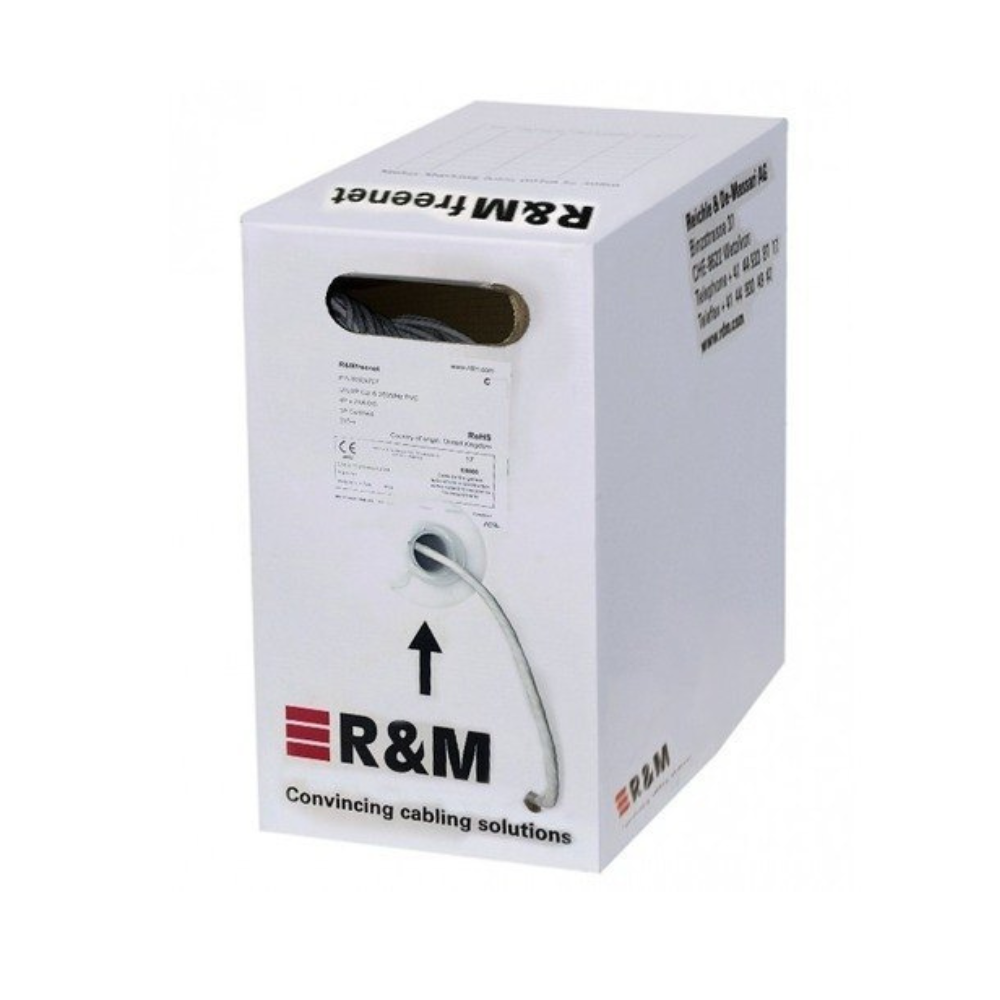

R&M R795138 Cat6 U/UTP Cable 305m Price in Bangladesh

Description

Product Name: R&M R795138 Cat6 U/UTP Cable 305m Price in Bangladesh

Product Overview

The R&M R795138 is a Cat.6 U/UTP installation cable for generic cabling systems. It has four pairs of bare copper conductors, a flame-retardant PVC jacket and 100 Ω impedance, and supports data transmission frequencies up to 250 MHz.

The cable is supplied in a 305 m (1,000 ft) length with a light gray (RAL 7035) jacket. It is unshielded (U/UTP) and is used in primary (campus), secondary (riser) and tertiary (horizontal) cabling.

Key Features

• Cat.6 U/UTP installation cable, 4 pairs (8 wires)
• Transmission frequencies up to 250 MHz
• Bare copper conductor, AWG 24
• Flame-retardant PVC outer jacket
• 100 Ω impedance
• Unshielded construction (no pair screen, no overall screen)
• 305 m (1,000 ft) cable length
• Supports 10Base-T, 100Base-T and 1000Base-T applications

Technical Specifications

• Brand: R&M (Reichle & De-Massari)
• Model / Part Number: R795138
• Cable Type: Installation Cable, Cat.6, U/UTP, 4P, 250 MHz
• Category: Cat.6
• Shielding: U/UTP (unshielded)
• Conductor: Bare copper wire, AWG 24
• Number of Wires / Pairs: 8 wires / 4 pairs
• Max. Test Frequency: 250 MHz
• Impedance: 100 Ω
• Jacket Material: Flame-retardant PVC
• Jacket Color: Light gray (RAL 7035)
• Cable Outer Diameter: Ø 5.5 – 6.1 mm
• Cable Length: 305 m / 1,000 ft
• Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
• Installation Temperature: 0 °C to +50 °C
• Standards: ISO/IEC 11801, IEC 61156-5, EN 50173-1, EN 50288-6-1, ANSI/TIA-568-C.2
• Applications Supported: IEEE 802.3 (10Base-T, 100Base-T, 1000Base-T), IEEE 802.5 16 Mb, ISDN, TPDDI, ATM

Applications

The R&M R795138 is used for structured cabling in primary (campus), secondary (riser) and tertiary (horizontal) cabling. It supports 10/100/1000Base-T Ethernet and the other applications listed in the datasheet.
