Product Name: R&M R810597 Cat6 Connection Module Price in Bangladesh

Product Overview

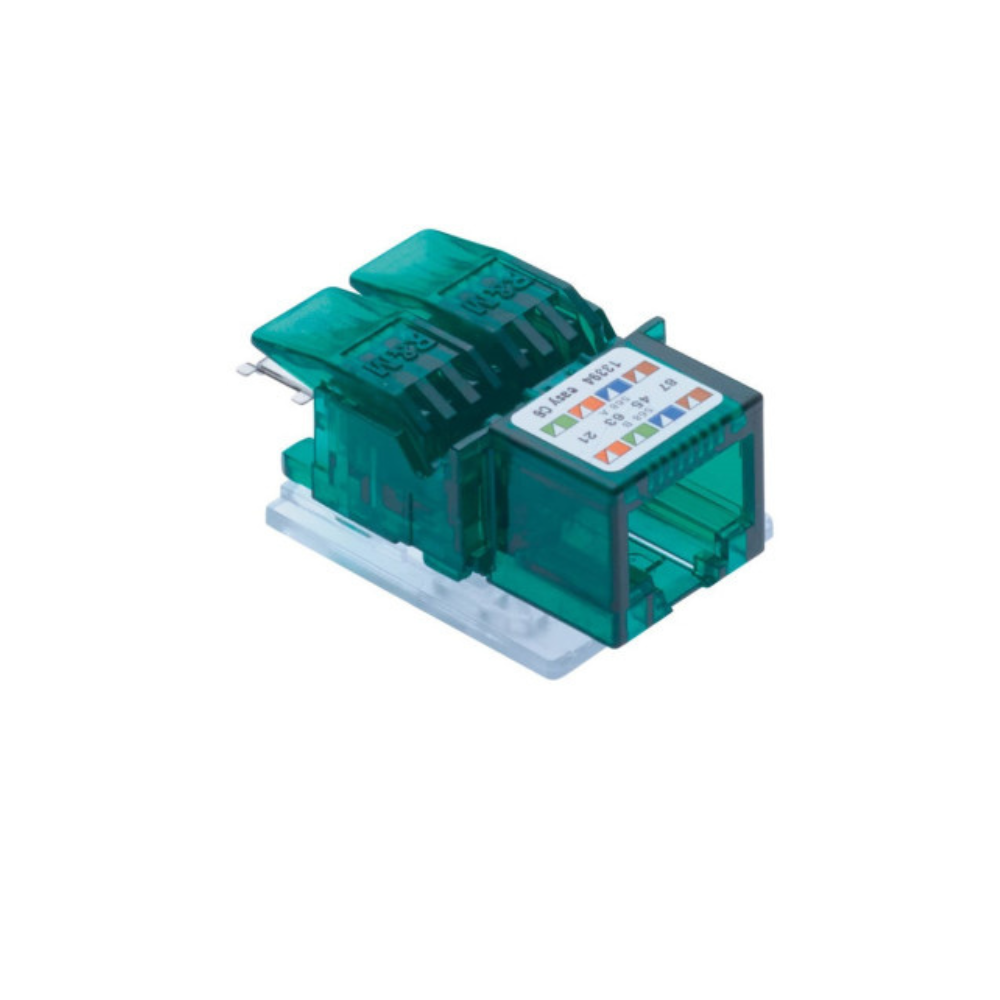

The R&M R810597 is an unshielded Cat.6 connection module with one RJ45 port, designed for installation in a mounting plate. It has 8 poles and supports T568A and T568B wiring.

The module uses tool-free termination of installation cables and is compatible with RJ standard plugs (RJ11, RJ12, RJ45). It is supplied with a mounting plate, dust cover, cable tie and installation instructions.

Key Features

• Cat.6 connection module with 1 × RJ45 port
• Unshielded design
• PCB-free, tool-free Easy-Lock termination
• 8 poles
• T568A and T568B wiring
• Compatible with RJ standard plugs (RJ11, RJ12, RJ45)
• Mounting plate holder
• Plastic housing (PC, UL 94 V-0)
• Includes mounting plate, dust cover, cable tie and installation instructions

Technical Specifications

• Brand: R&M (Reichle & De-Massari)
• Model / Part Number: R810597
• Connector Class: Connection Module
• Category: Cat.6
• Shielding: Unshielded
• Connector Type: RJ45
• Poles: 8
• Holder for Connector / Module: Mounting plate
• Wiring Diagram: T568A and T568B
• Standards: EN 50173-1; IEC 60603-7; ISO/IEC 11801
• Material: Plastic PC, UL 94 V-0
• Protection Class: IP 10 (corresponds to NEMA 1)
• Dimensions (W × H × D): 18.2 × 22.7 × 41.3 mm (0.717 × 0.894 × 1.626 in)
• Color: Green
• Scope of Supply: RJ45 Cat.6 connection module (unshielded), mounting plate, dust cover, cable tie, installation instructions

Applications

The R&M R810597 is used to terminate Cat.6 installation cable and provide an RJ45 outlet in a wallplate or mounting plate. It is part of a Cat.6 structured cabling channel.
