Product Name: R&M R810598 Cat6 Connection Module Price in Bangladesh
Product Overview

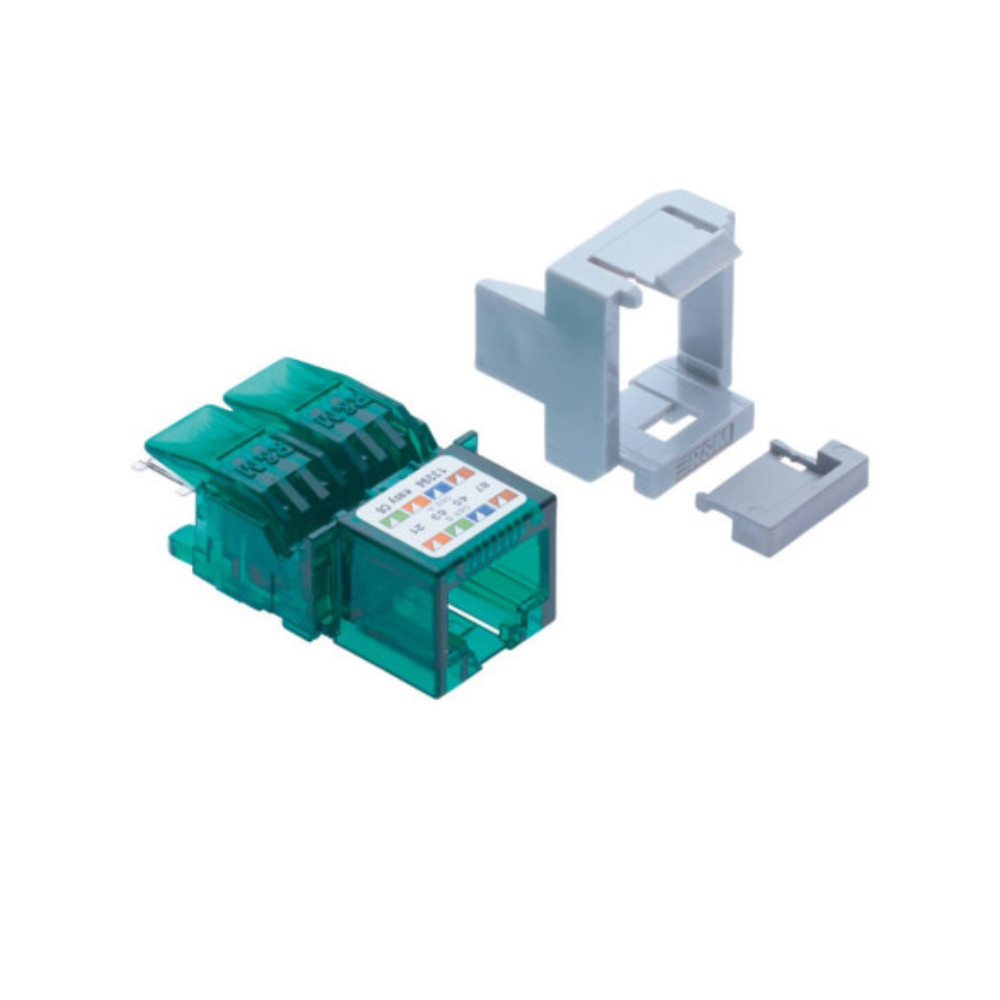

The R&M R810598 is an unshielded Cat.6 connection module with one RJ45 port and a snap-in adapter. It is designed for establishing Class E transmission channels with up to 4 plugged connections.
The module has 8 poles, supports EIA/TIA 568A and 568B wiring, and uses tool-free termination of installation cables. It is supplied with a snap-in adapter, dust cover, cable tie and installation instructions.
Key Features
- Cat.6 connection module with 1 × RJ45 port
- Unshielded design
- Snap-in mounting with snap-in adapter
- PCB-free, tool-free Easy-Lock termination
- 8 poles
- EIA/TIA 568A and 568B wiring
- Compatible with RJ standard plugs (RJ11, RJ12, RJ45)
- Gold-plated bronze contacts for more than 1,000 mating cycles
- Integral cable strain relief and dust cover
- Halogen-free materials
- Backwards compatible with Cat.5e and Cat.5
Technical Specifications
- Brand: R&M (Reichle & De-Massari)
- Model / Part Number: R810598
- Connector Class: Connection Module
- Category: Cat.6
- Shielding: Unshielded
- Connector Type: RJ45
- Poles: 8
- Holder for Connector / Module: Snap-In
- Wiring Diagram: EIA/TIA 568A / 568B
- Standards: EN 50173-1 (May 2007); IEC 60603-7; ISO/IEC 11801 (2nd Edition, September 2002); ANSI/TIA/EIA 568-B.2-1
- Supported Installation Cables: AWG 24, 23, 22 (0.5 mm – 0.65 mm)
- Supported Flexible Cables: AWG 26/7 – AWG 22/7
- 10GBase-T: Suitable per IEEE 802.3an up to 500 MHz and 55 m
- Material: Plastic PC, UL 94 V-0
- Dimensions (W × H × D): 18.2 × 22.7 × 41.3 mm
- Mounting Dimensions: 14.9 × 19.5 mm, maximum material thickness 1.6 mm
- Weight: 8.5 g
- Color: Green
- Scope of Supply: RJ45 Cat.6 connection module (unshielded), snap-in adapter, dust cover, cable tie, installation instructions
Applications
The R&M R810598 is used to terminate Cat.6 installation cable and provide an RJ45 outlet in a snap-in mounting opening. It is part of a Cat.6 structured cabling channel.
