Safeway AT5030A X-Ray Baggage Scanner Price in Bangladesh | Hotel and Office Security Solutions

Description

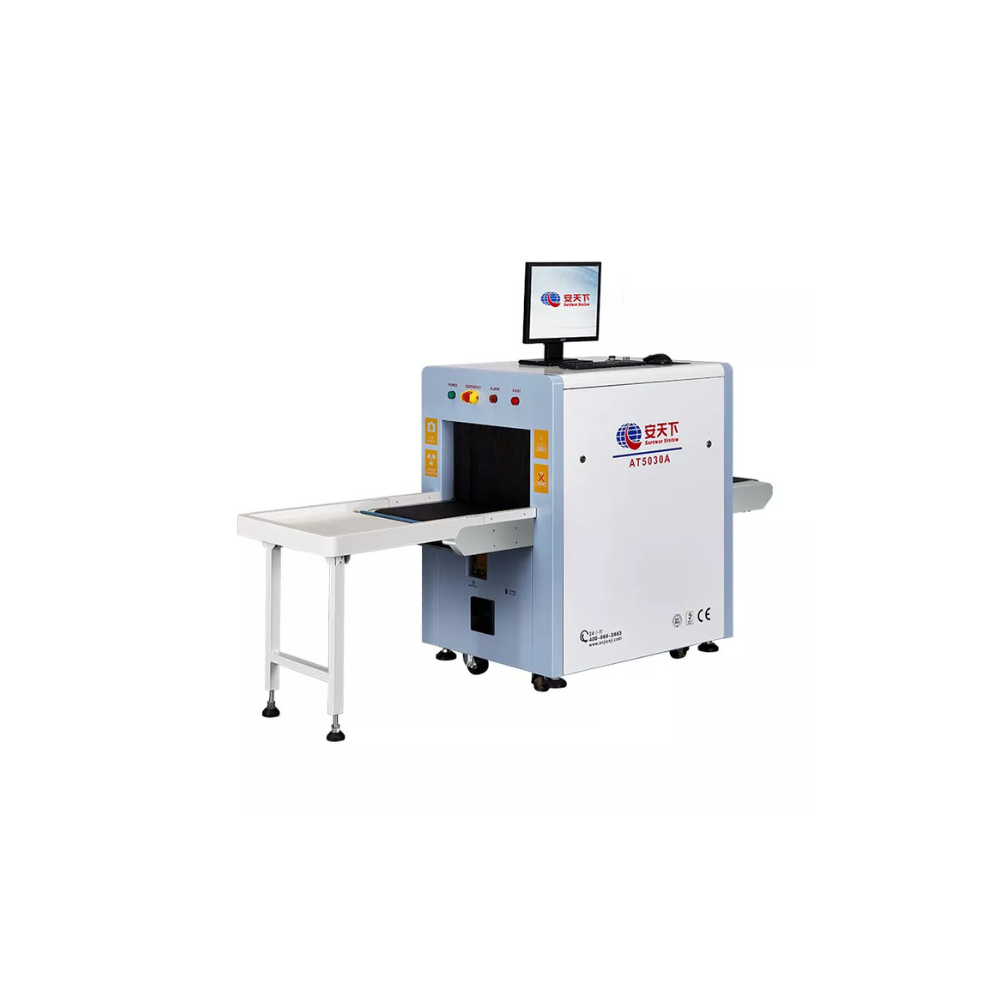

Product Name: Safeway AT5030A X-Ray Baggage Scanner Price in Bangladesh | Hotel and Office Security Solutions

Manufacturer: Safeway System

Product Description

The Safeway AT5030A X-Ray Baggage Scanner is a cost-effective, high-reliability security inspection system designed with an optimal 503 mm × 301 mm tunnel size for screening briefcases, parcels, express mail, hand luggage, and small packages without unpacking. Powered by an embedded Linux operating system with an IMX6 mainboard, 1GB running memory, and 8GB storage memory, it integrates an 80 kV single-energy X-ray generator and advanced digital image processing technology to deliver high-quality X-ray images with reliable penetration for efficient baggage inspection. Widely deployed across hotels, shopping malls, corporate offices, government agencies, schools, and transport checkpoints throughout Bangladesh, the AT5030A ensures seamless high-volume baggage screening and dependable threat detection.

Key Features

• Compact Security Tunnel: Features an optimized 503 mm × 301 mm tunnel configuration specifically tailored for inspecting briefcases, parcels, hand luggage, and visitor bags.

• Advanced Image Processing: Supports color/black & white imaging, local enhancement, high and low penetration enhancement, super enhancement, organic and inorganic highlighting, inverse color, brightening, darkening, gray sweep, zoom, organic marking, suspicious object marking, and edge enhancement.

• Substantial Image Storage: Stores up to 10,000 inspection images with file query, viewing, and export functions.

• Comprehensive Diagnostic Tools: Includes POST self-test, real-time curve monitoring, component troubleshooting, and acquisition system diagnostics.

• TIP (Threat Image Projection) Management: Supports customizable insertion of virtual threat items to monitor operator vigilance and generate performance evaluation reports.

• User Authority Management: Supports user login, multi-level user management, configurable permission levels, log management, and bilingual (Chinese/English) system settings.

Technical Specifications

• Brand: Safeway System

• Model: AT5030A

• Scanner Type: Compact X-Ray Baggage & Parcel Inspection System

• Tunnel Size: 503 mm × 301 mm

• Inspection Technology: Single-Energy X-Ray Imaging

• X-Ray Generator Anode Voltage: 80 kV (Sealed oil cooling)

• Wire Resolution: 40 AWG

• Penetration Resolution: 32 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 8 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 100 kg

• Single Inspection Dose: ≤ 3.5 µSv (µGy) per inspection

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.5 kW

• Operating System: Linux (IMX6 Mainboard, 1GB RAM, 8GB Storage)

• Display Monitor: 21.5-inch LCD monitor with a resolution of 1920 x 1080

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 260 kg

• Working Environment: 0°C to 40°C, 0% to 90% relative humidity

Applications

• Hotels and Hospitality Security Checkpoints

• Shopping Malls and Retail Commercial Centers

• Corporate Offices and Institutional Buildings

• Government Agencies and Postal Sorting Facilities

• Schools, Universities, and Hospitals

• Transport Stations and Public Event Venues

Conclusion

The Safeway AT5030A X-Ray Baggage Scanner combines a compact footprint, reliable 80kV X-ray imaging, and robust Linux-based management to deliver professional-grade security screening. Engineered as the most popular and cost-effective model in its class, it guarantees efficient operations and uncompromised safety compliance across commercial and institutional facilities in Bangladesh.
