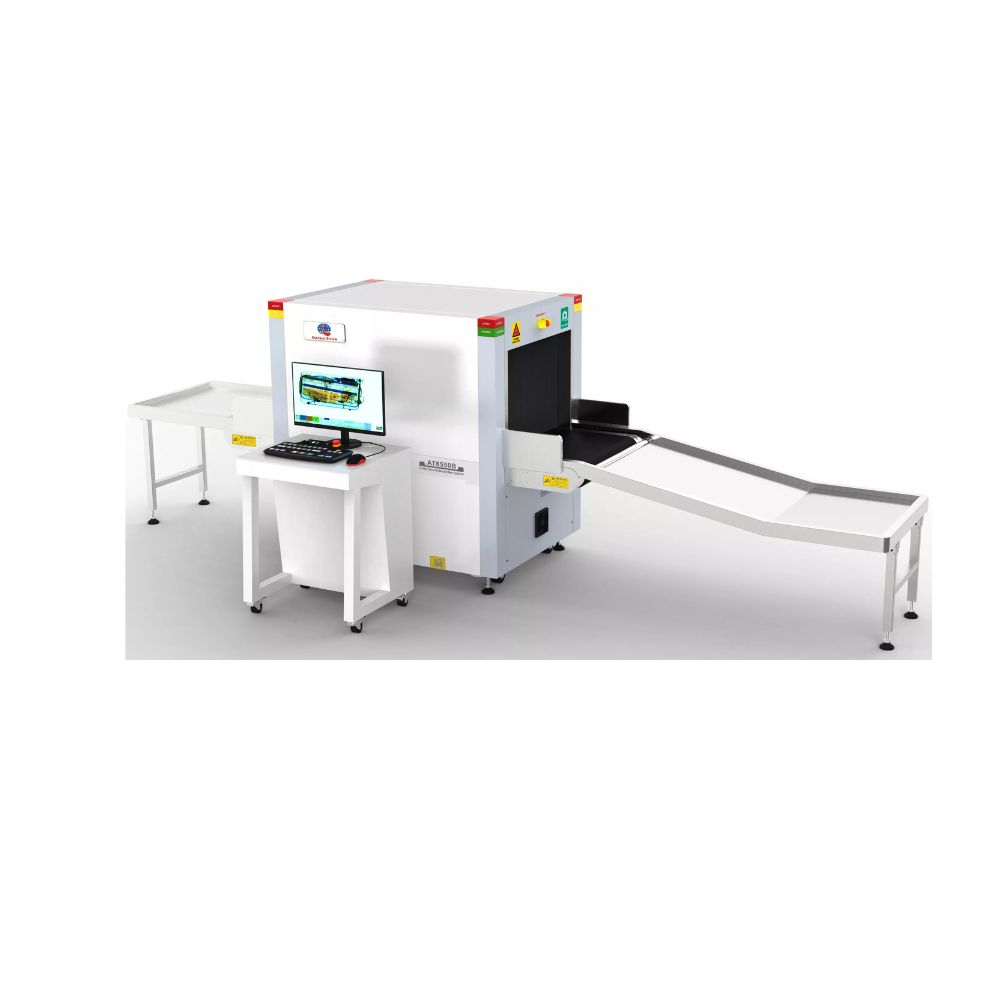

Safeway AT6550B X-Ray Baggage Scanner Supplier in Bangladesh | 65 × 50 cm Security Scanner

Description

Product Name: Safeway AT6550B X-Ray Baggage Scanner Supplier in Bangladesh | 65 × 50 cm Security Scanner

Manufacturer: Safeway System

Product Description

The Safeway AT6550B X-Ray Baggage Scanner is a high-quality dual-energy security inspection system featuring a standard 65×50 cm tunnel size, designed as a higher-quality version than the AT6550 with an upgraded 160 kV X-ray generator. Engineered for non-destructive screening of briefcases, parcels, express mail, hand luggage, and small parcels across government agencies, transportation hubs, and commercial facilities, it is powered by an Intel Core i3 operating platform with comprehensive software functions. Suitable for security checkpoints across Bangladesh, the AT6550B ensures a reliable 160 kV X-ray generator with sealed oil cooling, high-definition imaging, and continuous operational durability.

Key Features

• Standard Tunnel Opening: Features a versatile 65×50 cm tunnel size optimized specifically for screening larger handbags, backpacks, and medium-sized parcels.

• Advanced PC Architecture: Operates on a stable Intel i3 CPU platform with 1T hard drive and 4G RAM for robust image processing and system management.

• Comprehensive Image Processing: Provides multiple image enhancement modes including color/black-and-white, local enhancement, high/low penetration boost, and organic/inorganic highlighting.

• Extensive Management & TIP Tools: Features automated self-diagnostics, multi-level operator management, Threat Image Projection (TIP) management, and multi-format image export options.

• Specialized Security Functions: Includes integrated drugs and explosives inspection, baggage counting, training functions, and 30-image pullback capability.

Technical Specifications

• Brand: Safeway System

• Model: AT6550B

• Scanner Type: X-Ray Baggage Inspection System

• Tunnel Size: 65 cm (Width) × 50 cm (Height)

• X-Ray Generator Anode Voltage: 160 kV (Sealed Oil Cooling)

• Wire Resolution: Typical 40 AWG

• Penetration Resolution: Typical 34 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: Typical 36 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 150 kg

• Single Inspection Dose: ≤ 4.5 µSv (µGy)

• Boundary Leakage Dose: < 1.0 µSv/h (µGy/h)

• Noise Level: Less than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: Intel i3 3.3GHz with 1T Hard Drive and 4G RAM

• Operating System: Windows XP / Windows 7 / Windows 10 (Optional)

• Display Monitor: 21.5-inch LCD monitor with 1920 × 1080 resolution

• Console & Keyboard: Console table with dedicated security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 510 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standard

Applications

• Government Agencies and Courts

• Shopping Malls

• Railway Stations, Subways, and Transit Hubs

• Prisons, Procuratorates, and Embassies

• Schools, Universities, and Hospitals

• Factories, Industrial Plants, and Logistics Hubs

• Shopping Malls, Gymnasiums, and Exhibition Halls

Conclusion

The Safeway AT6550B X-Ray Baggage Scanner delivers reliable, high-performance security screening through its upgraded 160 kV X-ray generator, stable Intel-Windows architecture, and durable 150 kg conveyor capacity. Built to handle everyday workloads in security checkpoints, it ensures precise threat identification and long-term operational compliance across facilities in Bangladesh.
