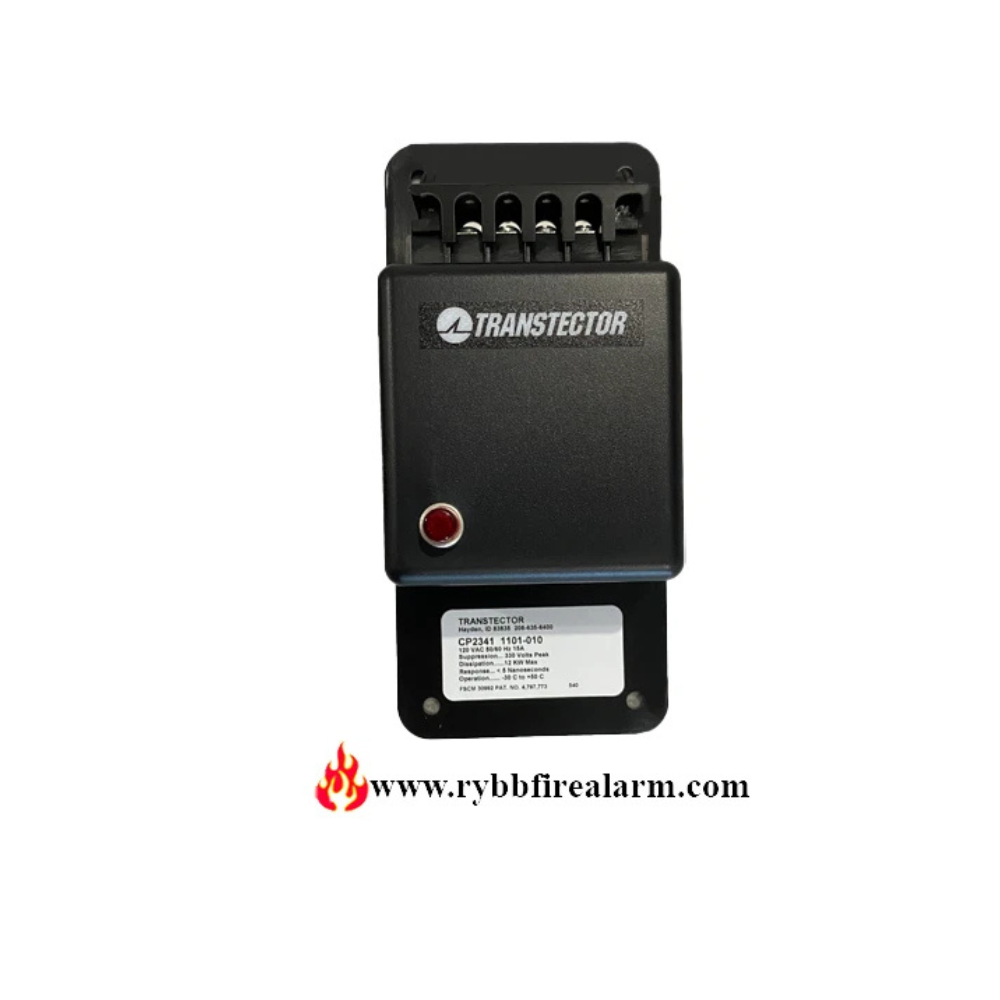

Product name: Siemens Transtector CP2341 Surge Protector Price in Bangladesh

Manufacturer: Transtector Systems / Siemens Building Technologies

Product Overview

The Siemens Transtector CP2341 (Transtector Part Number: 1101-010) operates as a hardwired, single-phase AC line surge protection device designed for primary 120 VAC power circuits. Furthermore, it connects in series along incoming AC power lines to provide solid-state transient protection for connected control equipment electronics.

In addition, the device features Silicon Surge Suppression (SASD) technology providing fast response times. Housed in a compact enclosure with mounting hole locations, the CP2341 incorporates terminal block screw connections for straightforward field wiring.

Power Grid Notice: Intended for use only on 120 VAC circuits. Standard AC electrical distribution in Bangladesh operates at 220–240 V AC. Do NOT connect this 120 VAC device directly to a 220–240 V mains supply. Any power step-down, transformation, or installation setup must be conducted strictly in accordance with manufacturer instructions and under the supervision of a qualified electrical or fire alarm technician.

Key Benefits

• Dedicated Power Line Protection: Designed for 120 VAC 15 A power lines supplying control equipment.

• Silicon Surge Suppression: Employs Silicon Avalanche Suppression Diode (SASD) technology for voltage transient clamping.

• Hardwire Terminal Layout: Connects in series using screw terminals for line, neutral, and load connections.

• Compact Physical Design: Easily mounts inside or adjacent to control cabinets.

Key Features & Installation Setup

• Hardwire Terminal Integration: Connects incoming 120 VAC supply to outside LINE and NEUTRAL terminals, feeding the panel load through inside LOAD and NEUTRAL screw terminals.

• Compact Enclosure Footprint: Compact physical structure designed to mount within or adjacent to the cabinet enclosure.

• Wide Operating Temperature Range: Operates across an ambient temperature range of −30°C to +65°C.

Technical Specifications Overview

• Brand: Transtector Systems / Siemens Building Technologies

• Model / Part Number: CP2341 (Transtector 1101-010 / ACP 2341)

• Product Type: Hardwired AC Line Surge Protection Device (SPD)

• Circuit Application: Intended for use only on 15 A, 120 VAC circuits

• Nominal Service Voltage: 120 VAC, Single-Phase

• Surge Protection Technology: Silicon Surge Suppression (SASD)

• Surge Current Rating (8/20 µs): 10 kA

• Voltage Protection Level (Vpl 8/20 µs, L–N): 330 Vpk

• Maximum Response Time: 5 ns

• Wiring Connection: Terminal Block Screw Terminals (LINE, NEUTRAL, LOAD)

• Dimensions: 6.5 in. H × 3.0 in. W × 2.7 in. L (16.5 cm × 7.6 cm × 6.9 cm)

• Operating Temperature Range: −30°C to +65°C (−22°F to +149°F)

Conclusion

The Siemens Transtector CP2341 (1101-010) AC Line Surge Protector delivers solid-state transient protection for 120 VAC 15 A primary power lines. Its Silicon Surge Suppression technology, 10 kA surge current rating, 330 Vpk protection level, 5 ns response time, and hardwired terminal block design ensure dependable surge protection for critical control unit power inputs.
