Simplex 4098-9792 Standard Sensor Base Price in Bangladesh

Description

Product name: Simplex 4098-9792 Standard Sensor Base Price in Bangladesh

Product Overview

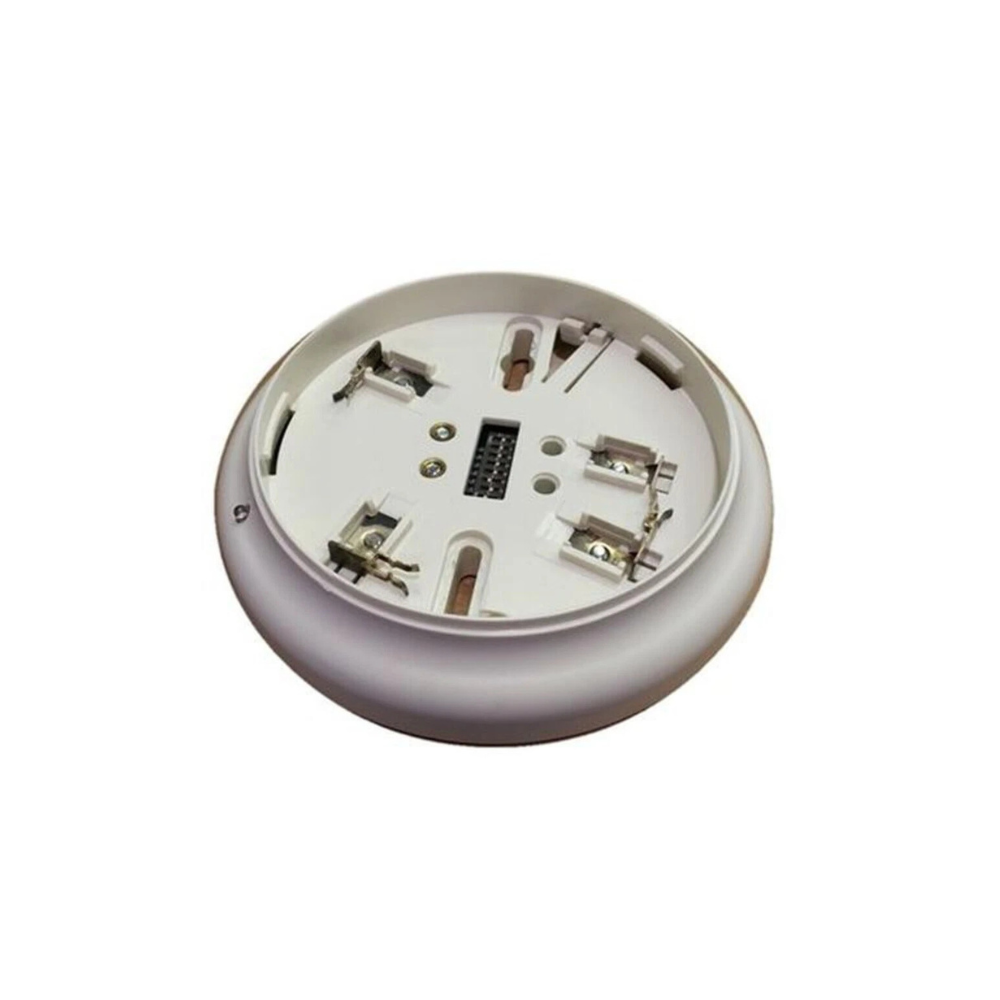

The Simplex 4098-9792 is a standard addressable sensor base designed for use with compatible TrueAlarm photoelectric smoke and heat sensor heads. Equipped with internal addressable communications, the base interfaces the connected sensor head directly with the fire alarm control panel.

It is a “no-options” base model, meaning it is designed specifically for standard sensor attachment without support for remote LED indicators or relay circuits. Communicating via MAPNET II or IDNet channels, it stores the address setting on a base-mounted DIP switch and continuously transmits sensor data to the main panel.

Key Features

• Standard addressable sensor base for Simplex TrueAlarm sensor heads

• Compatible with MAPNET II and IDNet communication channels (auto-selected)

• Base-mounted DIP switch for location-based address setting

• Transmits digitized sensor output to the control panel every four seconds

• Integral red LED indicator for visual communications and status feedback

• Magnetically operated functional test capability

• Compatible with specific Simplex control panels equipped for MAPNET II or IDNet loops

Technical Specifications

• Brand: Simplex

• Model: 4098-9792

• Type: Standard TrueAlarm Addressable Sensor Base (No Options)

• Color: White

• Communications / Loop: IDNet or MAPNET II (auto-selected)

• Address Setting: Base-mounted DIP switch (accessible from front under sensor)

• Indicators: Integral red LED (pulsing for communications/power-on; steady for alarm or trouble condition)

• Testing: Magnetically operated functional test

• Compatible Sensor Heads: 4098-9714 Photoelectric Smoke Sensor, 4098-9733 Heat Sensor, and 4098-9734 High-Temperature Heat Sensor

• Compatible Control Panels: Simplex panels equipped with MAPNET II or IDNet communication modules (e.g., 4007ES, 4010, 4010ES, 4100ES, 4100U series; 4008 series; 4020, 4100, 4120 series)

• Mounting Requirements: 4 in. octagonal or 4 in. square electrical box (1-1/2 in. min. depth), or single-gang box (2 in. min. depth)

• Accessory: 4098-9832 adapter plate (for surface mounting or semi-flush 4 in. square box installations)

• Terminals: Screw terminals for in/out loop wiring (18 to 14 AWG)

Applications

Suitable for commercial, industrial, and institutional Simplex TrueAlarm fire alarm installations requiring standard addressable mounting bases for photoelectric smoke and heat sensors on MAPNET II or IDNet loops.

Conclusion

The Simplex 4098-9792 Standard Sensor Base delivers a reliable, addressable communication connection for TrueAlarm detector heads. Featuring base-located DIP switch addressing, 4-second reporting intervals, and compatibility across MAPNET II and IDNet loops, it provides a dependable mounting platform for compatible Simplex systems.
