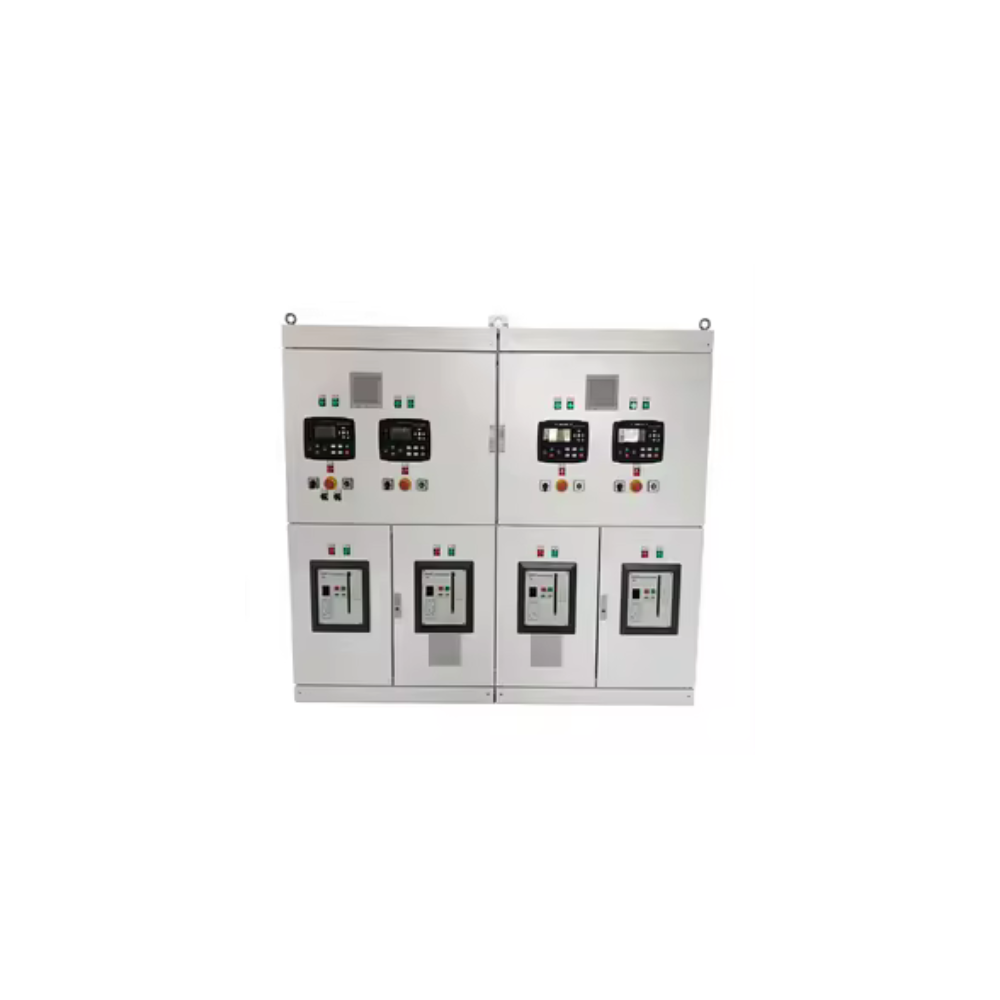

Product Name: UPS in DB (Output Distribution Board) Best Price in Bangladesh

Product Overview

The UPS in DB (Item Name: UPS in DB) is designed for the supply, installation, testing, and commissioning of a fully equipped UPS Output Distribution Board featuring integrated digital monitoring, circuit protection, an 800 Amp hard-drawn electrolytic copper busbar, and a 16 SWG sheet steel dust- and vermin-proof enclosure.

Key Features and Benefits

• Scope of Work: Involves the design, supply, installation, testing, and commissioning of a fully equipped UPS Output Distribution Board (DB) panel with integrated digital monitoring and circuit protection.

• Enclosure and Mounting: Built with a minimum 16 SWG sheet steel or thicker, enclosed, dust- and vermin-proof construction, featuring free-standing, floor-mounted, or wall-mounted styles.

• Electrical Ratings: Indoor-rated for 415 VAC, 50 Hz operations.

• Busbar Specifications: Equipped with a minimum 800 Amp hard-drawn electrolytic copper busbar, fully insulated, with a TPN & E (Three Phase + Neutral + Earth) configuration.

• Monitoring & Safety Components: Features minimum 3 Nos. Current Transformers (CTs), 3 Nos. indication lamps, powder-coated locks, insulated supports, and an internal ebonite cover for the busbar section.

• Protection Devices: Includes protection arrangements comprising 1 × TP-100A MCCB, 1 × TP-32A MCCB, and 3 × SP-32A MCBs.

• Digital Monitoring Functions: Provides real-time system monitoring through digital multimeters covering currents (I1, I2, I3, ΣI, In) and voltages (Phase/Neutral and Phase/Phase).

Technical Specifications

• Item Name: UPS in DB

• Quantity: 1 Unit

• Scope of Work: Design, supply, installation, testing, and commissioning of a fully equipped UPS Output Distribution Board (DB) panel

• Enclosure: Minimum 16 SWG sheet steel or thicker, enclosed, dust-proof and vermin-proof construction

• Mounting Style: Free-standing, floor-mounted, wall-mounted, or both

• Paint Finish: Electrostatic powder-coated finish

• Operating Voltage & Frequency: 415 VAC, 50 Hz, indoor-rated

• Busbar Rating: Minimum 800 Amp hard-drawn electrolytic copper busbar, fully insulated, TPN & E

• Input Breaker: Drawout-type breaker installed inside the Distribution Board (DB)

• DB Size: Suitable to accommodate the actual site requirements

• Current Transformers: Minimum 3 Nos. Current Transformers (CTs)

• Indication Lamps: Minimum 3 Nos. indication lamps

• Lock & Insulators: Powder-coated lock and insulated supports

• Busbar Safety Cover: Internal ebonite cover for busbar section

• Digital Monitoring – Current: Monitoring of I1, I2, I3, ΣI, and In (including 4th CT for neutral)

• Digital Monitoring – Voltage (Phase/Neutral): Monitoring of V1, V2, and V3

• Digital Monitoring – Voltage (Phase/Phase): Monitoring of U12, U23, and U31

• Protection Devices Installed: Minimum protection arrangement comprising $1 \times \text{TP-100A MCCB}$, $1 \times \text{TP-32A MCCB}$, and $3 \times \text{SP-32A MCBs}$

• Regulatory Compliance: Compliant with the 15th Edition of IEE Wiring Regulations

• Performance Features: Rugged dust-proof and vermin-resistant enclosure; modular and service-friendly design; real-time system monitoring through digital multimeter

• Application: Suitable for industrial plants, data centers, server rooms, and other critical power distribution facilities

• Warranty & Service Support: 3 Years Comprehensive Service Support with Warranty including Free Spare Parts and Installation Assistance

Conclusion

Ultimately, the UPS in DB delivers the robust busbar rating, circuit protection configurations, and digital monitoring features outlined in the tender specification for mission-critical power distribution setups across Bangladesh.
