Vertiv™ CoolPhase Wall (3.5–11 kW) | Wall-Mount Split Cooling for Small IT Rooms in Bangladesh

Description

Product Name: Vertiv™ CoolPhase Wall (3.5–11 kW) | Wall-Mount Split Cooling for Small IT Rooms in Bangladesh

Manufacturer: Vertiv

Product Overview

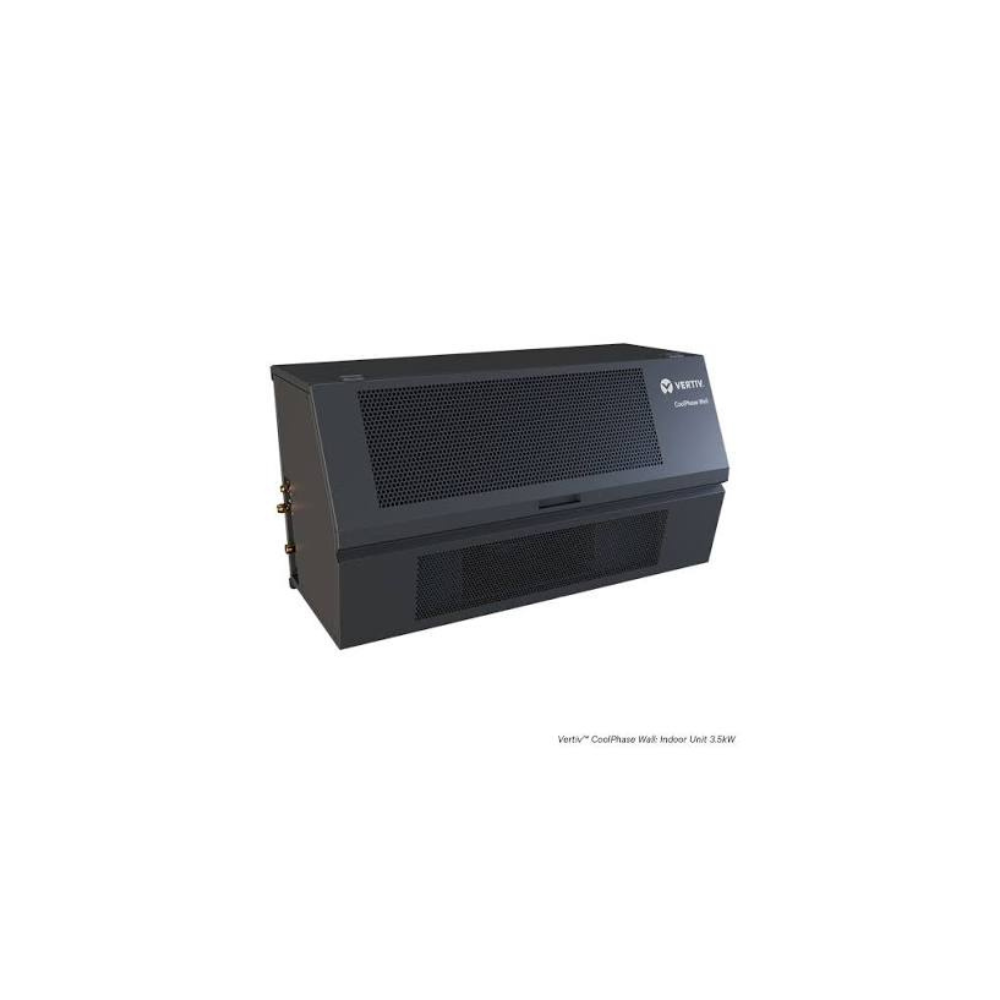

The Vertiv™ CoolPhase Wall functions as a wall-mount split cooling system engineered specifically for small technical rooms, edge computing applications, and server rooms. Taking up zero floor space, this compact unit provides up to 11 kW of dedicated precision cooling. Equipped with variable-speed compressors, EC fans, and low-GWP R-32 refrigerant, it ensures high energy efficiency and consistent thermal regulation to prevent IT equipment failure.

Key Features and Benefits

• Zero Floor Space Design: Compact wall-mounted indoor units preserve valuable room space while managing dense server loads.

• High Sensible Heat Ratio (SHR): Features an SHR of $\ge 0.9$, thereby providing targeted IT heat removal at reduced operating costs.

• Low-GWP R-32 Refrigerant: Utilizes R-32 refrigerant to successfully reduce environmental impact without sacrificing thermal efficiency.

• Variable-Speed Technology: Variable-speed compressors and EC fan motors dynamically adapt to real-time thermal loads to optimize overall energy use.

• Intelligent Controls & Redundancy: Powered by the Vertiv™ Liebert® iCOM™ Edge Controller with remote monitoring (HTTP, SNMP, BACnet, Modbus) alongside multi-unit teamwork for active standby lead/lag control.

• Wide Operating Range: Condenser heat rejection capability spanning from -31°F to 118°F (-35°C to 48°C) accommodates diverse environmental conditions.

Technical Specifications by Model

Model WLM030A (3.5 kW)

• Total Nominal Capacity: 3.5 kW (12,000 BTUH)

• Net Sensible Capacity: 3.5 kW (11,942 BTUH)

• Sensible Heat Ratio (SHR): $\ge 0.9$

• Maximum Airflow: 618 CFM (1,050 CMH)

• Input Power Supply: 208/230V, 1Ph, 50/60 Hz

• Refrigerant Type: R-32

• Indoor Unit Dimensions (H × D × W): 490 × 390 × 915 mm (19.29 in × 15.35 in × 36.02 in)

• Matching Standard Condenser: CUD030-E000A

• Matching Low-Ambient Condenser: CUL030-E000A

• Control System & Certifications: Liebert® iCOM™ Edge | CE, cETLus, UKCA

Model WLM070A (7.0 kW)

• Total Nominal Capacity: 7.0 kW (24,000 BTUH)

• Net Sensible Capacity: 6.5 kW (22,178 BTUH)

• Sensible Heat Ratio (SHR): $\ge 0.9$

• Maximum Airflow: 1,177 CFM (2,000 CMH)

• Input Power Supply: 208/230V, 1Ph, 50/60 Hz

• Refrigerant Type: R-32

• Indoor Unit Dimensions (H × D × W): 490 × 390 × 1,265 mm (19.29 in × 15.35 in × 49.80 in)

• Matching Standard Condenser: CUD070-E000A

• Matching Low-Ambient Condenser: CUL070-E000A

• Control System & Certifications: Liebert® iCOM™ Edge | CE, cETLus, UKCA

Model WLM110A (11.0 kW)

• Total Nominal Capacity: 11.0 kW (37,500 BTUH)

• Net Sensible Capacity: 10.0 kW (34,120 BTUH)

• Sensible Heat Ratio (SHR): $\ge 0.9$

• Maximum Airflow: 1,825 CFM (3,100 CMH)

• Input Power Supply: 208/230V, 1Ph, 50/60 Hz

• Refrigerant Type: R-32

• Indoor Unit Dimensions (H × D × W): 490 × 390 × 1,425 mm (19.29 in × 15.35 in × 56.10 in)

• Matching Standard Condensers: CUD111-E000A, CUD115-E000A

• Matching Low-Ambient Condensers: CUL111-E000A, CUL115-E000A

• Control System & Certifications: Liebert® iCOM™ Edge | CE, cETLus, UKCA

Ideal Applications

Small and edge data centers

Server rooms and network closets

Telecommunications switching rooms

Banking, financial, and insurance IT spaces

Healthcare and educational IT infrastructure

Conclusion

Consequently, the Vertiv™ CoolPhase Wall series offers flexible, zero-footprint wall-mount split precision cooling ranging from 3.5 kW to 11 kW. Designed with low-GWP R-32 refrigerant alongside smart iCOM controls, it supplies small server rooms and edge spaces in Bangladesh with reliable, high-efficiency protection against thermal overloads.

Contact Us

For accurate pricing, model selection, stock availability, and professional installation of Vertiv precision cooling systems in Bangladesh, contact our technical team:

• Phone: +8801737118246

• Email: [email protected]
