Vertiv Liebert GXT MT+ 10KVA Online UPS Best Price in Bangladesh

Description

Product Name: Vertiv Liebert GXT MT+ 10KVA Online UPS Best Price in Bangladesh

Manufacturer: Vertiv

Product Overview

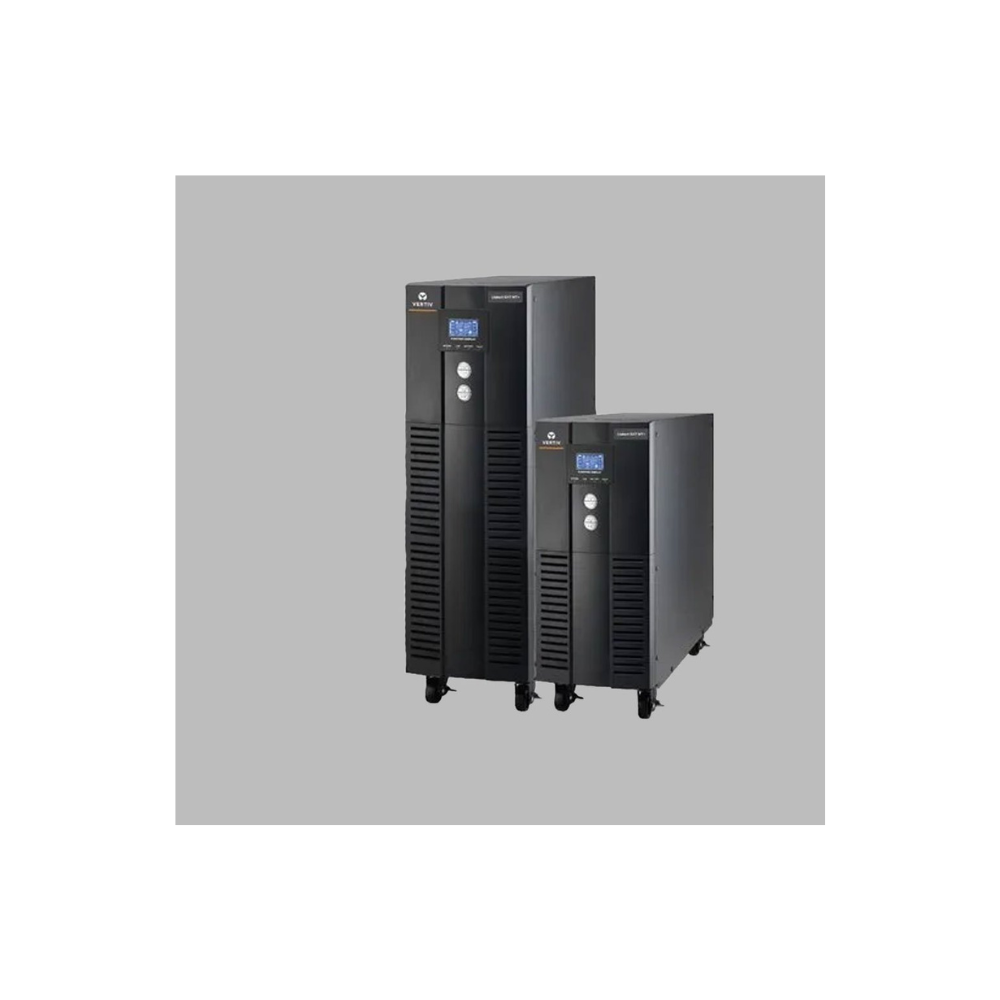

The Vertiv Liebert GXT MT+ 10KVA (Model: GXT MT+ 10KVA 3×1) is an advanced three-phase to single-phase true online double-conversion UPS system engineered for mission-critical power protection. Featuring an IGBT-based rectifier, DSP control technology, and flexible battery configurations, it delivers a robust 10000 VA / 9000 W capacity, high energy efficiency, and clean pure sine wave power for heavy-duty corporate servers, data centers, and industrial setups in Bangladesh.

Key Features and Benefits

• True Online Double Conversion: Continuously converts incoming AC power to DC and back to AC, completely isolating connected systems from utility spikes, surges, sags, and outages.

• DSP Control & IGBT Rectifier: Advanced digital signal processing and IGBT-based rectification ensure maximum reliability, precise regulation, and low harmonic distortion.

• High Efficiency & Power Factor: Delivers up to 92% AC mode efficiency, 97% ECO mode efficiency, an active input power factor of ≥0.99, and a 0.9 output power factor.

• Flexible Input & Generator Compatibility: Features a wide input voltage window (305–478 VAC 3-phase) and a wide input frequency range (40 Hz – 70 Hz) for seamless generator operation.

• 4-Stage Extendable Charging & High Charging Current: Supports adjustable battery charging currents up to 12A (settable to 2/4/6/8/10/12 Amps) to accommodate diverse battery capacities.

• Real-Time Graphical LCD Display: Provides comprehensive real-time data on UPS status, load levels, battery status, input/output voltages, and built-in diagnostic timers.

• Intelligent Monitoring: Includes standard RS232/USB ports alongside an optional slot for SNMP cards, RS485, or dry contact management.

Technical Specifications

• Brand: Vertiv

• Country of Origin: USA

• Country of Manufacture: China

• Model: GXT MT+ 10KVA (3×1)

• Phase Configuration: 3 Phase In / 1 Phase Out

• Capacity (VA / Watts): 10000 VA / 9000 W

• Nominal Input Voltage: 3 x 400 VAC (3Ph+N)

• Input Voltage Range: 305-478 VAC (3-phase) @ 100% load

• Input Frequency Range: 40 Hz – 70 Hz (Generator Compatible)

• Input Power Factor: ≥0.99 @ 100% load

• Input Harmonic Distortion (THDi): <6% @ 100% load

• Output Voltage Options: 208 / 220 / 230 / 240 VAC

• AC Voltage Regulation: ±1%

• Output Waveform: Pure Sine Wave

• Transfer Time: Zero

• Output Harmonic Distortion: ≤2% THD (Linear Load); ≤5% THD (Non-linear Load)

• AC Mode Efficiency: >92%

• ECO Mode Efficiency: 97%

• Battery Type Compatibility: Lead-acid / Tubular / Li-ion

• Battery Block Numbers: 18 to 20 units (adjustable)

• Charging Current (Max): Up to 12A (settable to 2 / 4 / 6 / 8 / 10 / 12 Amps)

• Charging Voltage: 273 VDC ±1% (Based on 20 pcs batteries)

• Physical Dimensions (D x W x H): 592 x 250 x 576 mm

• Net Weight: 28 kg

• Communication Ports: Smart RS232 / USB

• Management Support: Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, Unix, and MAC operating systems; optional SNMP slot for web browser management

• Operating Environment: 0°C to 50°C (Humidity: 0% to 95% RH non-condensing, Noise Level: Less than 58 dBA at 1 meter)

Ideal Applications

• Medium to Large Data Centers and Server Rooms

• Enterprise IT and Telecommunication Networks

• Industrial Automation and Control Systems

• Critical Healthcare and Diagnostic Equipment

• Financial Data Hubs and ATM Switching Stations

Conclusion

The Vertiv Liebert GXT MT+ 10KVA Online UPS combines heavy-duty three-phase input efficiency, high power density, and versatile battery charging options, making it an exceptional power protection solution for growing enterprise infrastructure across Bangladesh.
