Vertiv Liebert S600 20KVA Online UPS Best Price in Bangladesh

Description

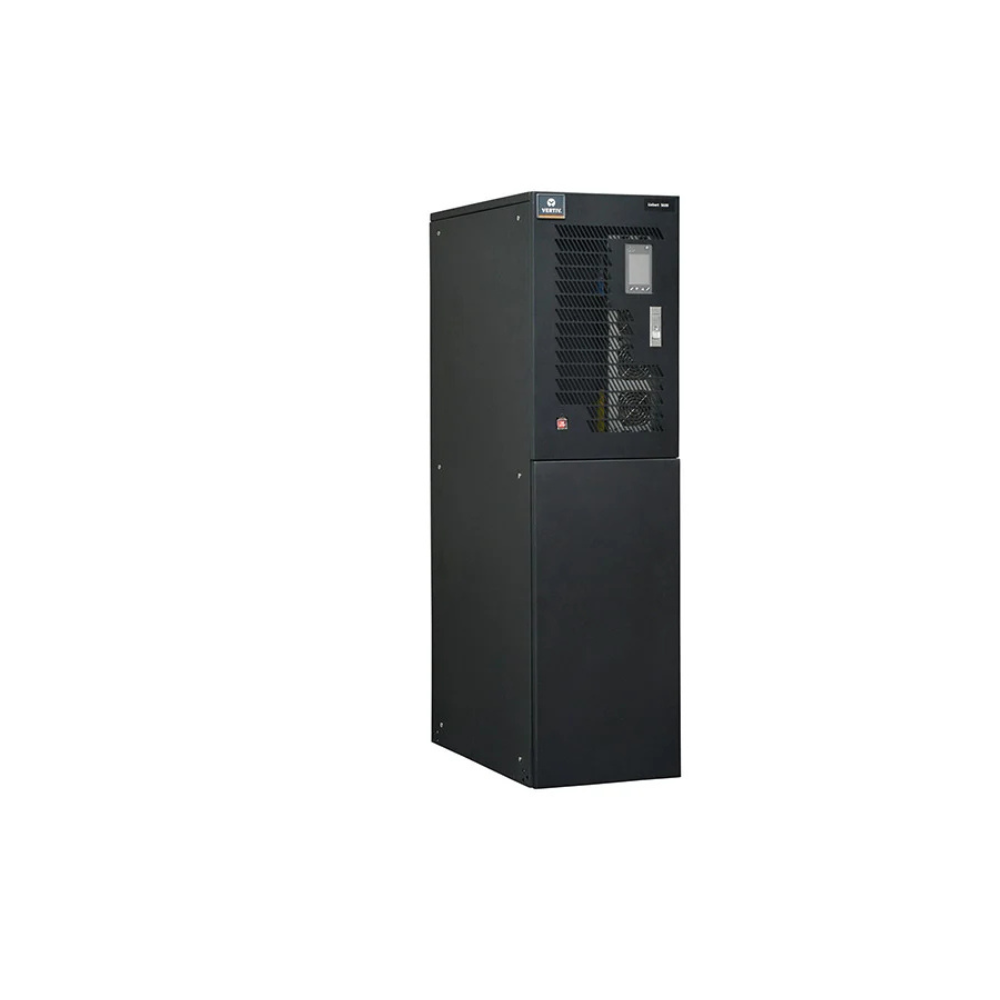

Product Name: Vertiv Liebert S600 20KVA Online UPS Best Price in Bangladesh

Manufacturer: Vertiv

Product Overview

The Vertiv Liebert S600 20KVA (Model: Liebert S600 20kVA 3 In – 1 Out) is a robust, high-efficiency online uninterruptible power supply engineered specifically for edge networks, light industrial applications, and data centers. Featuring an inbuilt isolation transformer, fully digital control technology, and unity output power factor, it delivers clean and reliable power while seamlessly integrating into virtualized environments at a lower operating cost.

Key Features and Benefits

• Inbuilt Isolation Transformer: Protects both the UPS and connected sensitive loads from severe voltage fluctuations and electrical noise.

• Unity Power Factor: Delivers 20kW of real active power from its 20kVA rating, maximizing capacity utilization.

• High Operating Temperature: Designed to perform reliably in demanding environments with a wide operating temperature range from 0°C to 50°C.

• Parallel Redundancy: Supports parallel configuration operations for up to 4 units to ensure higher system availability and scalability.

• Lithium-Ion Battery Compatible: Fully adaptable to modern energy storage options including Sealed Maintenance Free Valve Regulated Lead Acid and Li-ion batteries.

• Graphical Touch Screen LCD Display: Offers a user-friendly operating interface for real-time monitoring, system alarms, and fault diagnostics.

• Integrated Network Monitoring: Comes with built-in web-page monitoring via SNMP capabilities and an optional RDU SIC G2 card for remote power management.

Technical Specifications (20kVA Model)

• Brand: Vertiv

• Model: Liebert S600 20kVA (3 In – 1 Out)

• Rating / Capacity: 20kVA / 20kW

• Phase Configuration: 3-phase in / 1-phase out (3-phase, 4-wire)

• Rated Input Voltage: 380 / 400 / 415 Vac

• Input Voltage Range: 176–288 Vac (Phase to Neutral) at 100% load; 100Vac–288Vac at 50% load

• Rated Frequency: 50Hz / 60Hz

• Input Frequency Range: 40Hz ~ 70Hz

• Input Power Factor: ≥0.95 at full load

• Input Phase Reversal Correction: Optional

• Output Voltage: 220 / 230 / 240 Vac (Single phase)

• Output Power Factor: Unity (1.0)

• Voltage Regulation: ±2%

• Output Voltage Harmonic Distortion: <2% (Linear load)

• Crest Factor: 3 : 1

• Dynamic Response Recovery Time: 40ms

• Isolation Transformer: Inbuilt at UPS output

• Efficiency (ECO Mode): >94%

• Efficiency (Online AC-AC Mode): >91%

• Inverter Efficiency (DC-AC): 88%

• Battery Type Compatibility: Sealed Maintenance Free Valve Regulated Lead Acid / Lithium-ion Batteries

• Number of Batteries: 24, 32, 34, 36, 38, 40 blocks (32 by default)

• Battery Fuse Disconnector: Inbuilt

• Battery Charging Capacity: 13A

• Transfer Time (Mains to Battery): 0 ms

• Transfer Time (Inverter to Bypass): Synchronous transfer ≤0ms; Asynchronous transfer ≤20ms

• Parallel Operation Limit: Up to 4 units

• Noise Level: <60dB at 1 meter

• Physical Dimensions (W x D x H): 335 x 650 x 1300 mm

• Net Weight: 175 kg

• Ingress Protection: IP20

• Ventilation: Forced-air cooled

• Operating Environment: 0°C ~ 50°C (Relative humidity: 5%RH ~ 95%RH non-condensing, Altitude: ≤3000m)

• Communication & Management: Smart RS232/USB, Inbuilt Web-page Monitoring (SNMP), Modbus via multifunction port, and optional RDU SIC G2 card support.

Ideal Applications

• Edge Networks and Distributed IT Closets

• Small-to-Medium Data Centers

• Light Industrial Automation and Control Rooms

• Telecom Infrastructure and Server Farms

• Precision Instruments and Medical Workstations

Conclusion

The Vertiv Liebert S600 20KVA Online UPS offers enterprise-grade power security with its built-in isolation transformer, unity power factor, and flexible parallel architecture, making it the definitive choice for critical infrastructure protection in Bangladesh.
