ABB 6300A 100kA 3P ACB Best price in Bangladesh

Description

Product Name: ABB 6300A 100kA 3P ACB Best price in Bangladesh

Manufacturer: ABB

Product Overview

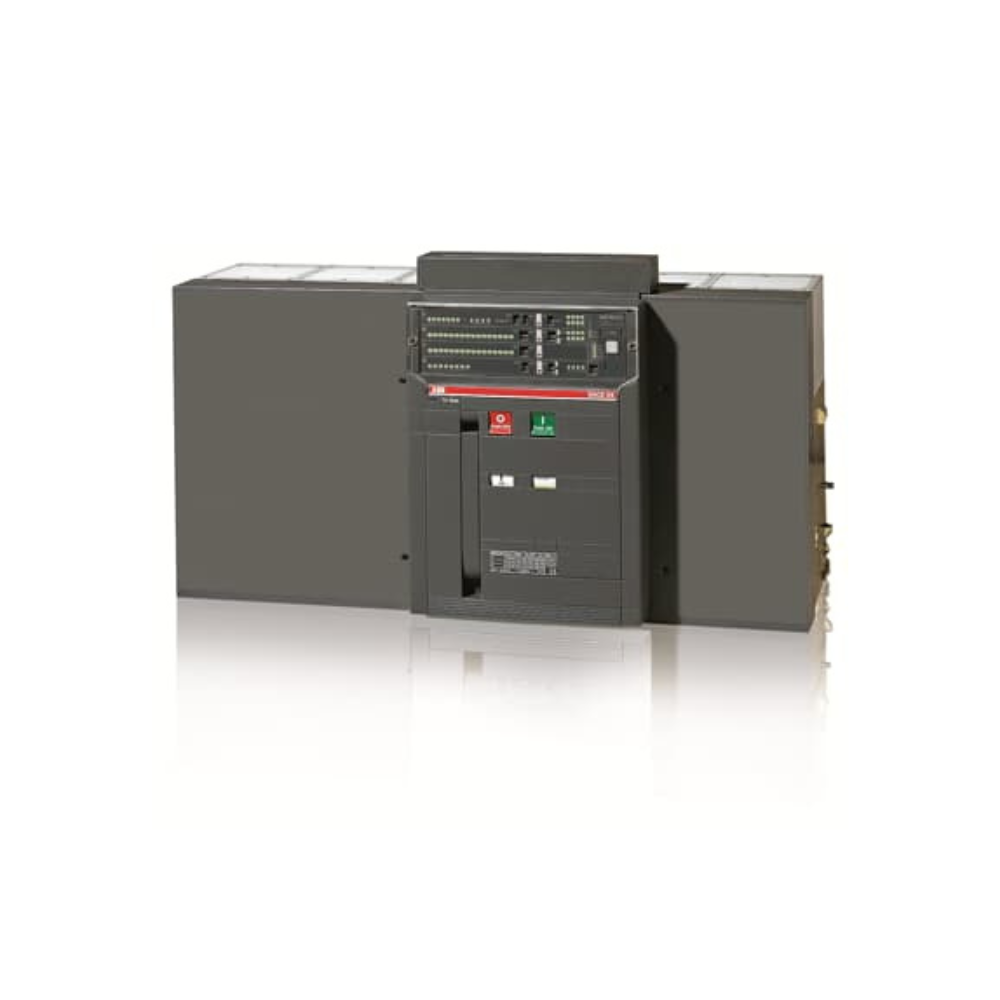

The ABB E6H 6300 PR121/P-LI is a high-capacity 3-pole air circuit breaker from the SACE Emax series, designed for heavy-duty power distribution applications and industrial switchgear with a rated operational voltage up to 690 V AC. Equipped with the PR121/P-LI electronic release unit, it is engineered for handling continuous rated currents up to 6300 A with reliable short-circuit protection and switching performance.

Key Features and Benefits

• Reliable AC Circuit Protection: Designed with an advanced PR121/P-LI electronic release unit for precise overcurrent protection and stable performance in high-power industrial electrical systems.

• High Breaking Capacity: Efficiently manages massive short-circuit currents, rated for an ultimate and service short-circuit breaking capacity (Icu / Ics) of up to 100 kA across various voltage levels up to 690 V AC.

• Built-in Auxiliary Contacts: Equipped with integrated auxiliary contacts (4 auxiliary contacts) and position indication (open/closed) for essential feedback integration and interlocking control.

• Robust Mechanical and Electrical Design: Built for high electrical durability (up to 2000 cycles at $\le 440\text{ V}$) and mechanical durability up to 12000 cycles to support continuous, heavy-duty industrial power distribution networks.

Technical Specifications

• Product Line: ABB SACE Emax Series Air Circuit Breakers

• Model / Part Number: E6H 6300 PR121/P-LI In=6300A 3p F HR (1SDA057008R1)

• Number of Poles: 3-Pole (3P)

• Release Type: Electronic (PR121/P-LI)

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 12 kV

• Rated Current (In): 6300 A

• Rated Uninterrupted Current (Iu): 6300 A

• Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA (up to 690 V AC)

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA (up to 690 V AC)

• Rated Short-time Withstand Current Low Voltage (Icw): 100 kA for 1 s / 85 kA for 3 s

• Terminal Connection Type: Fixed Circuit-Breakers, Rear flat Horizontal (F HR)

• Dimensions (H x W x D): 418 mm x 782 mm x 302 mm

• Product Net Weight: 112 kg

Ideal Applications

• Main Low-Voltage (LV) Power Distribution Switchboards in Bangladesh

• Industrial Plants and Heavy Manufacturing Facilities

• Commercial Complexes and Infrastructure Substation Networks

• Generator Protection and Main Incoming Switchgear

Conclusion

Ultimately, the ABB E6H 6300 PR121/P-LI 3-Pole Air Circuit Breaker delivers reliable electronic release operation, high breaking capacity, and dependable performance for heavy-duty industrial power distribution and protection applications.
