APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8659)

Description

Product Name: APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8659)

Manufacturer: APC (Schneider Electric)

Product Overview

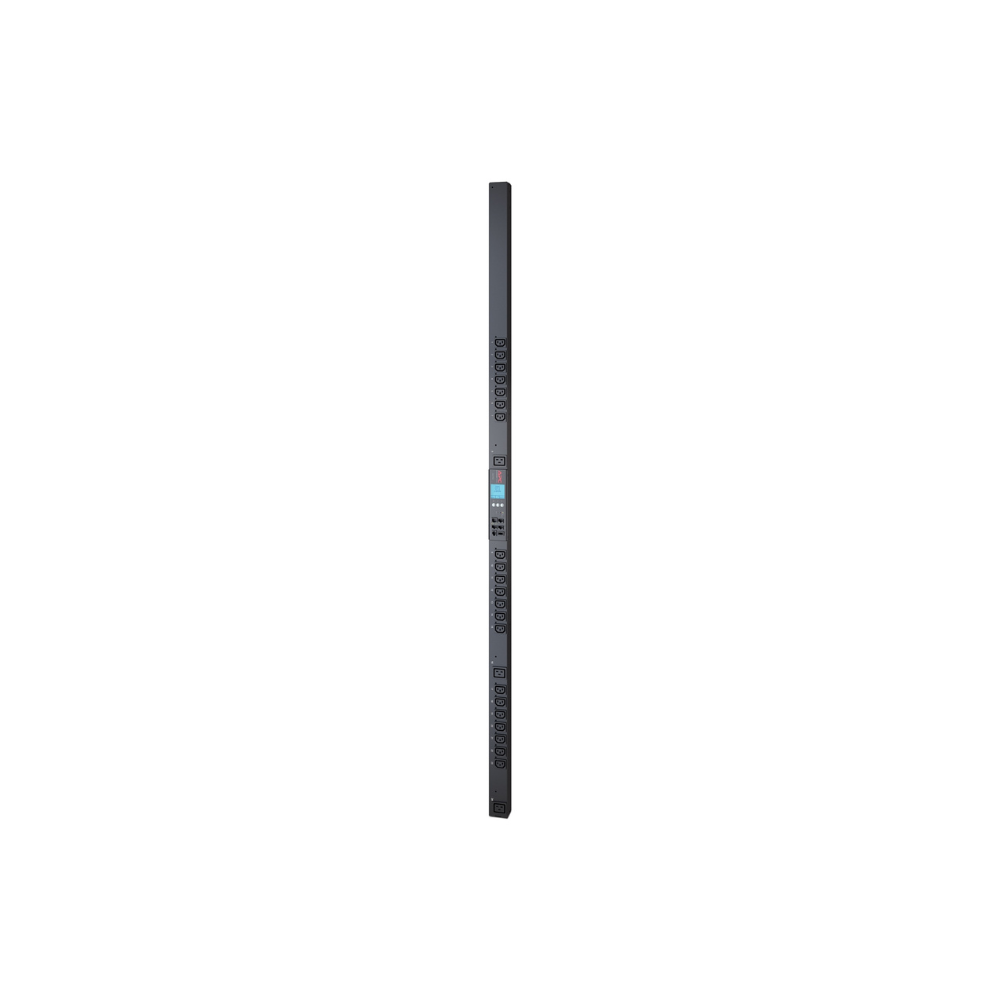

The APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A/208V, 16A/230V, 21 C13 and 3 C19 outlets (Model: AP8659) enables advanced, user-customizable power control and individual outlet power metering. Remote outlet-level controls allow power on/off functionality to reboot locked-up equipment and avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment to avoid circuit overloads during power recovery and extend the uptime of critical infrastructure.

Key Features and Benefits

• Metered-by-Outlet with Switching: Provides individual outlet power metering and remote on/off switching capabilities.

• Active Power Monitoring: Delivers real-time remote monitoring of connected loads, real power monitoring, and user-defined alarms to warn of potential circuit overloads.

• Power Sequencing Delays: Allows users to configure custom power-up and power-down sequences to prevent circuit overloads during power recovery.

• Sensor Port: Includes an integrated temperature/humidity sensor port for environmental monitoring.

• Locking IEC Receptacles: Compatible with locking power cords to prevent accidental disconnections.

• 0U Vertical Rack Integration: Designed for efficient, tool-less side mounting on standard vertical server racks.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8659 (NetShelter Switched & Metered-by-Outlet PDU 2G)

• Product Type: Switched Metered Outlet Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 200V, 208V, 230V

• Main Output Voltage: 100V, 200V, 208V, 230V

• Network Frequency: 50/60 Hz

• Input Current Limits: 20A

• Rated Current [In]: 16A per phase

• Permissible Voltage: 100–240V

• Max Current Draw: 16A

• Load Capacity: 3300 VA

• Input Connection Type: IEC 60320 C20

• Output Outlets: 21 × IEC 60320 C13 and 3 × IEC 60320 C19

• Protection Type: Without circuit breaker

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Operating Altitude: 0 to 10,000 ft

• Storage Altitude: 0 to 15,240 m (0 to 50,000 ft)

• Dimensions (H × W × D): 1829 mm × 56 mm × 51 mm (72.01 in × 2.20 in × 2.01 in)

• Net Weight: 6.09 kg (13.43 lb)

• Provided Equipment: CAN Port Terminator, Installation Guide, Rack Mounting Brackets, Safety Guide, Serial Configuration Cable

• Product Certifications: PSE, UL Listed, VCCI Class A, VDE

• Standards: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003

Ideal Applications

• High-Density Server Racks and Data Centers

• Enterprise IT Environments Requiring Outlet-Level Power Management

• Remote Facilities Managed via Secure Web, SNMP, or Telnet Interfaces

Conclusion

The APC NetShelter AP8659 Metered-by-Outlet with Switching Rack PDU delivers a 3.3 kW load capacity across 24 outlets (21 × C13 and 3 × C19) in a space-saving 0U vertical form factor, providing enterprise data centers with precise, remote power distribution and monitoring control.
