APC NetShelter Metered Rack PDU Price in Bangladesh (AP8830)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8830)

Manufacturer: APC (Schneider Electric)

Product Overview

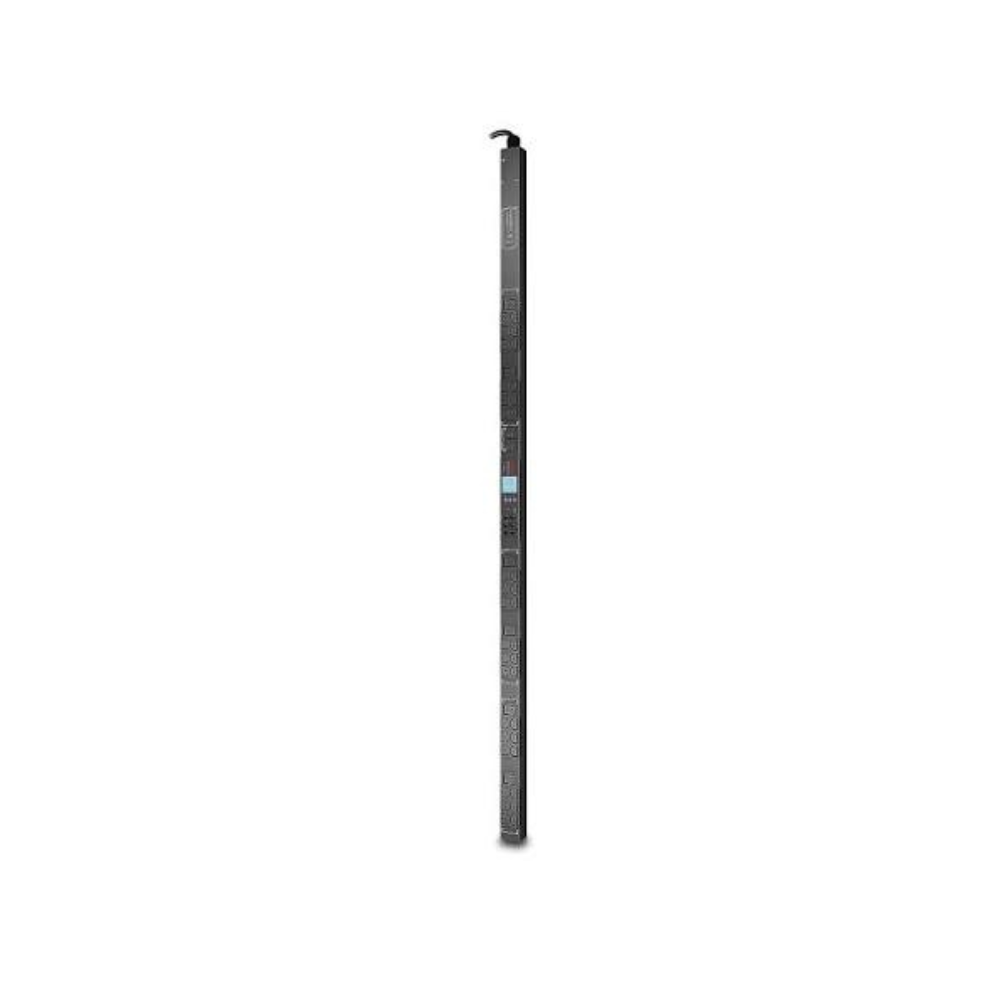

The APC NetShelter Metered Rack PDU, 2G, 0U, 20A, 100V to 120V, 24 NEMA 5-20R outlet (Model: AP8830) is an intelligent power distribution unit engineered to provide active power metering, remote monitoring, and load management. Featuring a 1,920 VA load capacity, a NEMA L5-20P input connection with a 9.5 ft (2.9 m) cord, and 24 × NEMA 5-20R output outlets, this metered PDU supports enterprise server rooms and data centers. It features a 0U vertical form factor designed for side mounting inside server racks while offering real-time power monitoring and user-defined alarm thresholds.

Key Features and Benefits

• Active Power Metering: Provides real-time remote and local monitoring of connected loads to enable energy optimization and efficient load balancing.

• Power Utilization Monitoring: Provides power utilization data for volts, amps, real power (kW), and energy (kWh) with ±3% metering accuracy to support capacity planning and right-sizing.

• Secure Network Management: Supports real-time remote monitoring and management through web, SNMP, or Telnet interfaces via Secure NMC3.

• User-Defined Alarms: Features customizable alert thresholds to warn of potential circuit overloads before critical IT failures occur.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving internal space for IT hardware.

• Locking Receptacles: When used with compatible locking power cords, the receptacles help reduce accidental cord disconnection.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8830 (NetShelter Metered Rack PDU 2G)

• Product Type: Metered Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 100V, 120V 1-phase

• Main Output Voltage: 100V, 120V

• Input Frequency: 50/60 Hz

• Input Current Limit: 20A

• Line Rated Current: 16A

• Load Capacity: 1920 VA

• Input Connection Type: NEMA L5-20P (with 9.5 ft / 2.9 m cable)

• Output Outlets: 24 × NEMA 5-20R outlets

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 1791 mm × 55 mm × 44 mm (70.5 in × 2.2 in × 1.7 in)

• Net Weight: 5.59 kg (12.32 lb)

• Standards & Certifications: cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1

• Compliance: RoHS, REACh

Ideal Applications

• Enterprise Server Rooms and Data Centers Requiring Active Power Metering

• Server Rack Environments Requiring 0U Vertical Power Distribution

• Mission-Critical Facilities Requiring Load Balancing and Right-Sizing

• IT Environments Utilizing Secure Web/SNMP Management Infrastructure

Conclusion

The APC NetShelter Metered Rack PDU AP8830 combines a 1,920 VA load capacity with a compact 0U vertical form factor and 24 × NEMA 5-20R outlets, alongside real-time active metering, serving as a power management solution for modern server rack environments.
