Fire-Lite ANN-LED Module Annunciator Price in Bangladesh

Description

Product Name: Fire-Lite ANN-LED Module Annunciator Price in Bangladesh

Manufacturer: Fire-Lite Alarms (Honeywell)

Product Overview

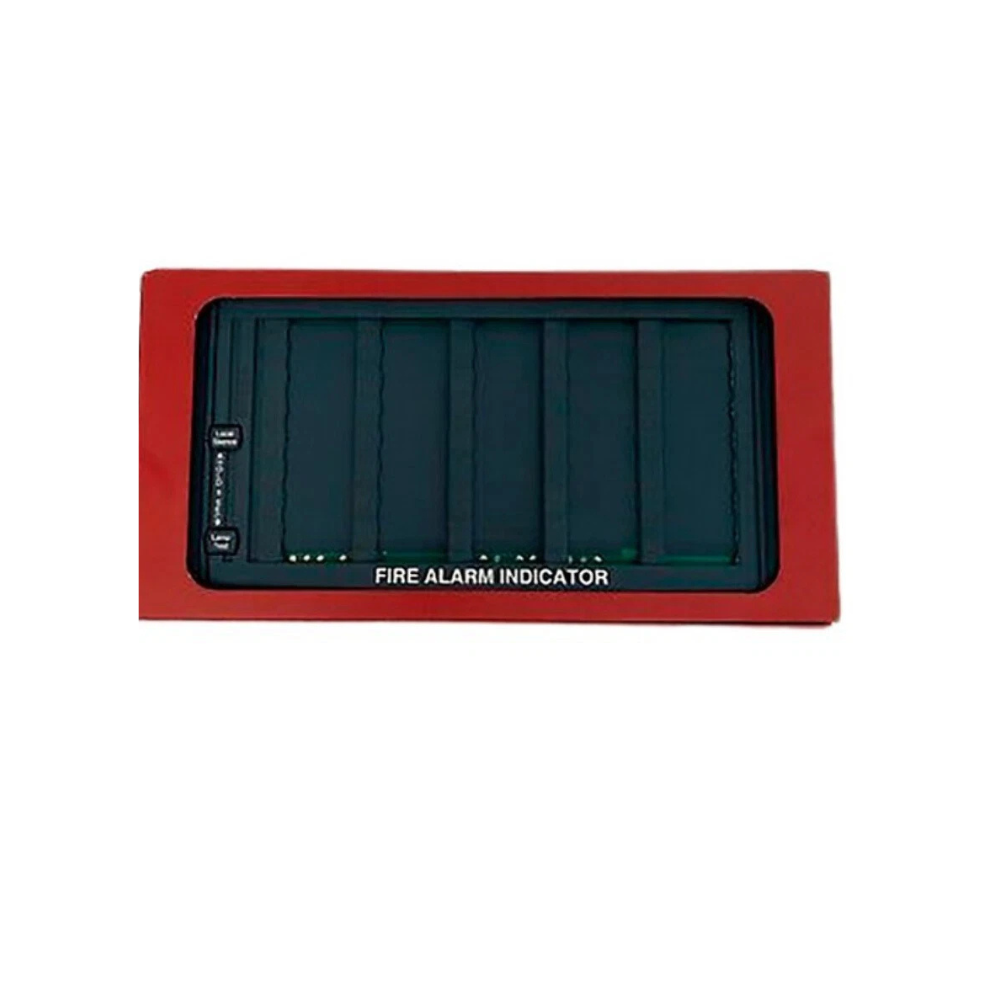

The Fire-Lite ANN-LED operates as a remote LED annunciator module for compatible Fire-Lite fire alarm control panels (FACPs). Furthermore, the unit connects to the host panel over a 2-wire serial ANN-BUS communication circuit and a 2-wire power circuit.

In addition, each of the 10 monitored input zones or addressable points includes dedicated LED indicators. Specifically, the faceplate features alarm (red), trouble (yellow), and supervisory (yellow) LEDs for each zone. Consequently, facility personnel obtain distributed, at-a-glance status visibility away from the main control panel. Meanwhile, up to eight ANN-BUS devices can be connected to a single host panel communication bus.

Key Benefits

• Zone Status Visibility: Displays dedicated alarm (red), trouble (yellow), and supervisory (yellow) LEDs for up to 10 zones.

• Distributed System Access: Enables remote monitoring away from the main fire alarm control panel, subject to wire gauge, current draw, and panel specifications.

• Simplified Cabling: Communicates and draws power over a 4-conductor unshielded cable on the ANN-BUS format.

• Flexible Powering: Operates via 24 VDC power directly from the host panel or an auxiliary remote power supply.

Key Features & Technologies

• ANN-BUS Protocol: Integrates with compatible Fire-Lite FACPs using the standard ANN-BUS serial communication format.

• Multi-LED Indication: Features 30 individual point LEDs (10 Alarm, 10 Trouble, and 10 Supervisory) alongside general system status indicators.

• Distance Capabilities: Supports extended wiring runs up to a maximum of 6,000 feet (1,829 meters) from the host panel, depending on wire size and system current load.

• Supervised Connections: Maintains power-limited and supervised communication circuits back to the control panel.

• Minimal Programming: Requires straightforward address selection and minimal panel programming during installation.

Technical Specifications Overview

• Brand: Fire-Lite Alarms / Honeywell

• Model: ANN-LED

• Product Type: Remote 10-Zone LED Annunciator Module

• Maximum ANN-BUS Voltage: 24 VDC

• Current Draw: 28 mA Standby, 68 mA Alarm

• Communication Format: ANN-BUS (Serial 2-Wire Data + 2-Wire Power)

• Maximum Wiring Distance: Up to 6,000 ft (1,829 m) based on cable specifications

• Operating Temperature: 0°C to 49°C (32°F to 120°F)

• Relative Humidity: 93% ± 2% RH (non-condensing) at 32°C

• Dimensions (H x W x D): 5.16 in x 10.04 in x 1.77 in (13.11 cm x 25.51 cm x 4.5 cm)

• Agency Listings: Agency listings: UL Listed, ULC Listed, FM Approved, CSFM Listed, MEA Approved (subject to applicable product certifications and installation requirements).

Conclusion

The Fire-Lite ANN-LED Module Annunciator delivers 10-zone visual status monitoring over the ANN-BUS communication protocol. Moreover, its dedicated alarm, trouble, and supervisory LEDs provide distributed system oversight across commercial fire protection installations.
