Honeywell Morley 722-001-301 ZX1Se Single Loop Fire Alarm Panel Price in Bangladesh

Description

Product Name: Honeywell Morley 722-001-301 ZX1Se Single Loop Fire Alarm Panel Price in Bangladesh

Product Overview

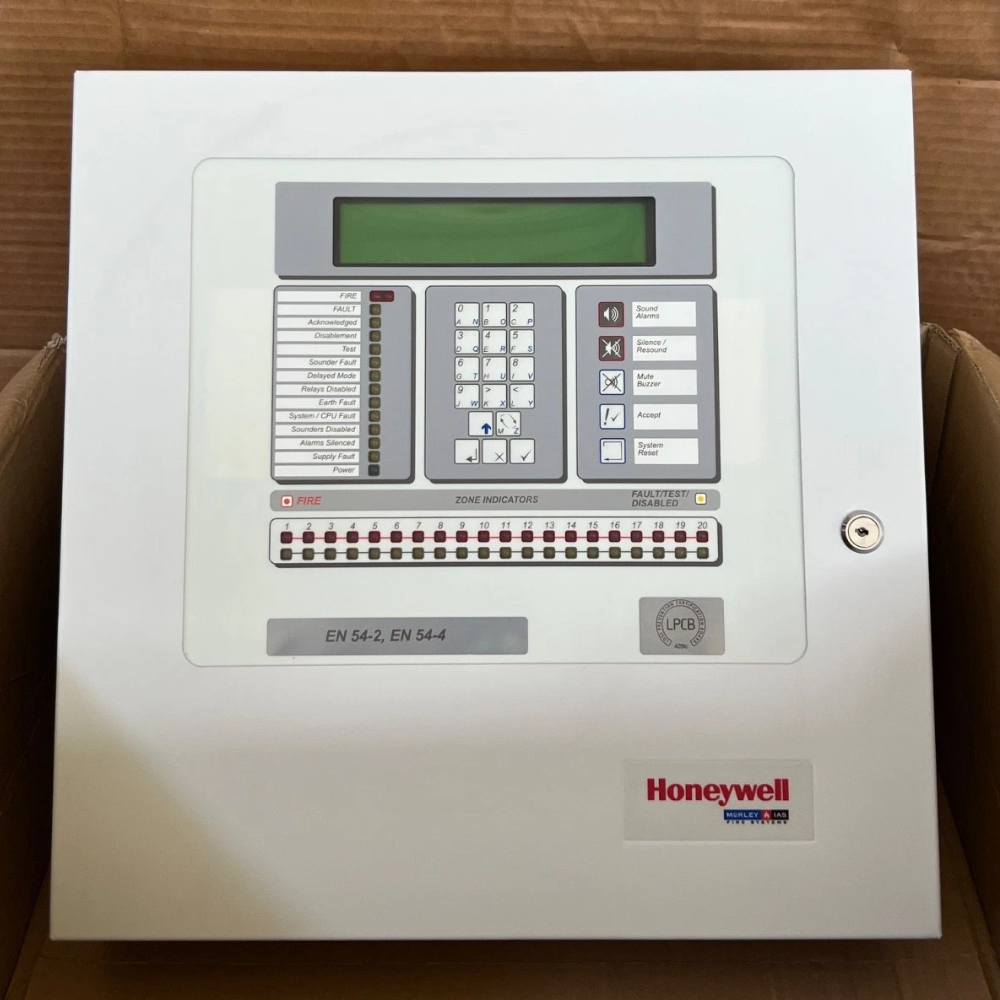

The Honeywell Morley 722-001-301 ZX1Se is an intelligent single-loop analogue addressable fire alarm control panel. It provides detection and system control for commercial facilities. Additionally, the unit features a 4×40 character backlit LCD display and 20 zonal LED indicators for operational status monitoring.

Specifications & Features

• Brand & Model: Honeywell Morley-IAS 722-001-301 ZX1Se

• Product Type: Single-Loop Intelligent Addressable Fire Alarm Control Panel

• Loop Capacity & Compatibility: Supports a single loop card with up to 460 mA loop current. Note: Protocol support depends on the installed loop card type, as only one protocol is active per card.

• Zonal Display: Includes 20 zonal LED indicators.

• Power Supply & Battery: Operates on 230V AC (50 Hz) with a 2.5A total power supply rating; supports 24V standby batteries (2× 12V 7Ah minimum to 12Ah maximum capacity).

• Outputs & Relays: Features 2 programmable monitored sounder circuits (1A maximum each, subject to total power supply limits) along with 1 fire and 1 fault volt-free changeover relay.

• Enclosure & Dimensions: Built with a sheet steel enclosure rated to IP30, measuring 400 mm (W) × 400 mm (H) × 135 mm (D).

• Standards & Compliance: Designed to comply with EN 54-2 and EN 54-4 standards.

Conclusion

The Honeywell Morley 722-001-301 ZX1Se is a single-loop analogue addressable fire alarm panel designed for commercial installations requiring addressable fire detection.
