Kentec Sigma CP K11040M2 4 Zone Fire Panel Price in BD

Description

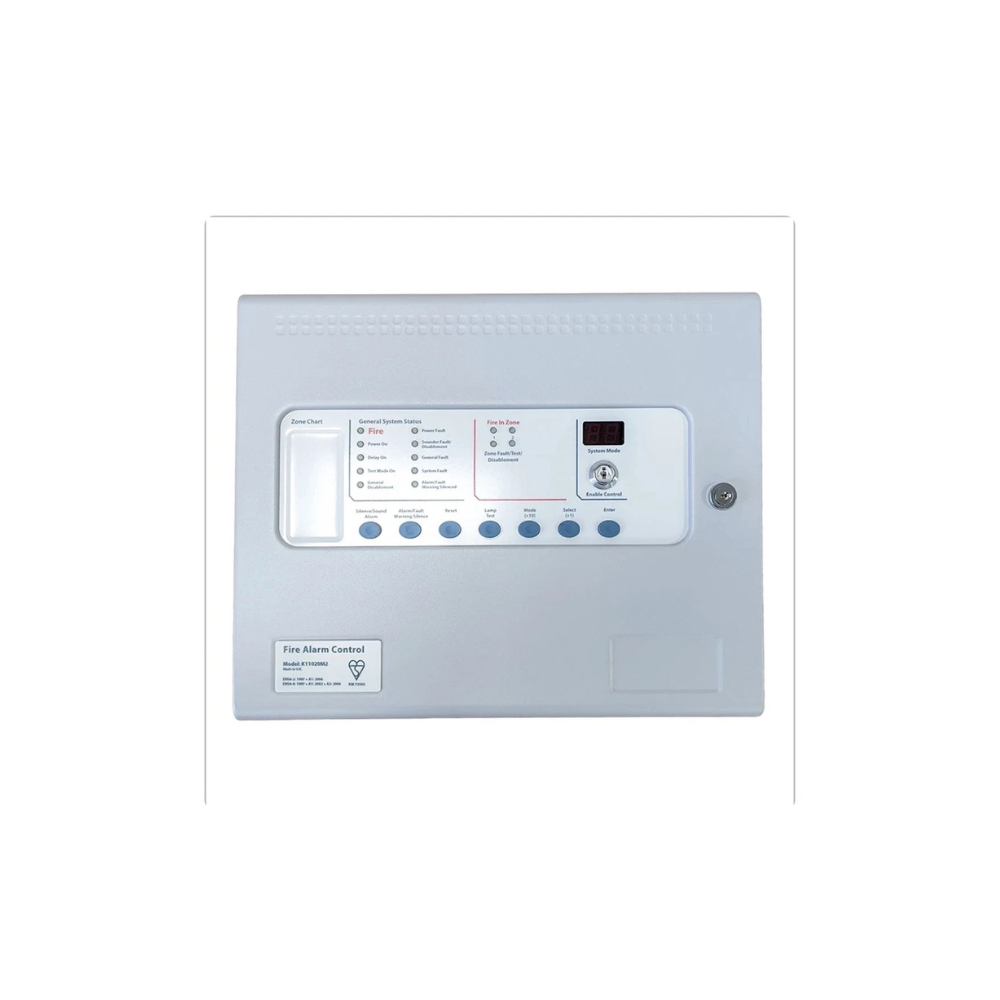

Product Name: Kentec Sigma CP K11040M2 4 Zone Fire Panel Price in BD

Country of Origin: United Kingdom

Product Overview

The Kentec Sigma CP K11040M2 is a 4-zone conventional fire alarm control panel manufactured in the UK. Designed for life safety and property protection in commercial and industrial premises, it features separate circuits for detection zones and alarm sounders (K11 conventional range). Housed in a $1.2\text{ mm}$ steel enclosure (IP30 rated), it includes an integrated $3\text{A}$ power supply unit certified to European fire standards and a two-wire RS485 serial bus supporting up to 7 repeater panels or expansion boards.

Specifications & Features

• Brand & Model: Kentec Electronics (MPN: K11040M2)

• Product Series: Sigma CP Series (K11 Conventional Range)

• Detection Zones: 4 conventional detection zones.

• Power Supply Rating: $3\text{A}$ power supply unit.

  • Mains Input Voltage: $230\text{ VAC}$ ($50/60\text{ Hz}$).

  • System DC Rating: $24\text{ VDC}, 3\text{A}$.

  • Battery Charge Voltage: $27.6\text{ VDC}$ nominal (temperature-compensated).

• Backup Battery Support: Houses up to two $12\text{ V}$ sealed lead-acid (SLA) rechargeable batteries (up to $7\text{ Ah}$ maximum capacity).

• Monitored Sounder Outputs: 2 monitored sounder circuits ($0.5\text{ A}$ per output, $1.6\text{ A}$ maximum combined total load).

• Serial Bus & System Expansion: Two-wire RS485 serial bus supporting up to 7 repeater panels, ancillary boards, or relay boards.

• Enclosure Construction & Protection: $1.2\text{ mm}$ sheet steel enclosure with IP30 ingress protection rating.

• Dimensions & Weight: $385\text{ mm (W)} \times 310\text{ mm (H)} \times 90\text{ mm (D)}$; Weight: Approx. $6.0\text{ kg}$ (without batteries).

Standards & Compliance

• European Standards Certification: Certified to BS EN54-2 (Control and Indicating Equipment) and BS EN54-4 (Power Supply Equipment).

• Installation Standard: Compatible with installations adhering to BS5839-1.

Technical Notice

Installation & Wiring Notice: The K11040M2 utilizes monitored circuits to detect open and short circuit fault conditions. Ensure correct end-of-line (EOL) monitoring devices are installed across detection zones and sounder circuits per manufacturer installation instructions. Always verify battery connections and charge voltage ($27.6\text{ VDC}$) prior to commissioning.

Conclusion

The Kentec Sigma CP K11040M2 4-zone conventional fire alarm panel delivers EN54-certified fire detection and notification control. Therefore, it serves commercial and industrial facilities requiring a UK-manufactured, expandable 4-zone conventional fire control panel.
