Description

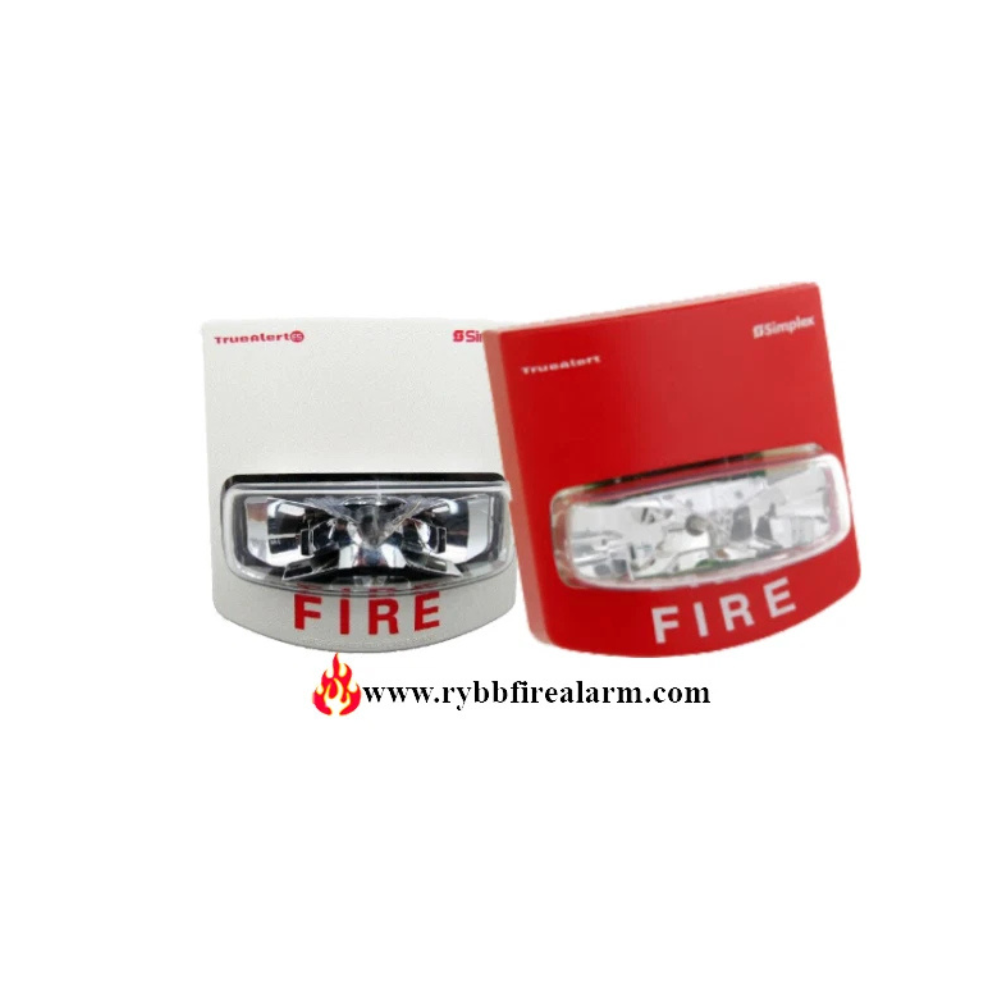

Product Name: Simplex 49VO-APPLW Addressable Strobe Price in Bangladesh

Manufacturer: Simplex (Johnson Controls)

Product Overview

The Simplex 49VO-APPLW operates as an individually addressed, visible-only (VO) wall-mount strobe designed for fire alarm notification systems. Operating on the Simplex TrueAlert ES addressable platform, it receives power, supervision, and control signals directly from a compatible Simplex fire alarm control panel over a two-wire IDNAC Signaling Line Circuit (SLC).

Furthermore, the 49VO-APPLW features multi-candela xenon strobe settings (15, 30, 75, 110, 135, and 185 cd) that can be selected at the appliance or programmed via the host control panel.

Ordering Information: The 49VO-APPLW is an appliance-only unit. The mounting plate and cover assembly are sold separately and must be ordered individually to complete the installation.

Key Benefits

• Individually Addressable Control: Operates on an addressable IDNAC circuit, allowing precise control, address identification, and individual appliance supervision from the host panel.

• Selectable Candela Ratings: Supports multi-candela intensity settings (15, 30, 75, 110, 135, and 185 cd) to meet room-specific visual coverage requirements.

• Synchronized Visual Signaling: Delivers a synchronized 1 Hz strobe flash rate across connected appliances on the same IDNAC circuit.

• Two-Wire IDNAC Efficiency: Receives power and digital addressable communication over a single two-wire IDNAC SLC loop.

Key Features & Technologies

• TrueAlert ES Platform Integration: Communicates over Simplex IDNAC circuits, maintaining continuous supervision of the appliance electronic circuitry.

• Onboard Diagnostic LED: Features an onboard LED indicator used to display polling status, address information, magnet test acknowledgment, and installation troubleshooting.

• Modular Appliance Assembly: Designed as a modular appliance-only unit requiring a separate mounting plate and cover.

• Flexible Junction Box Mounting: Compatible with standard single-gang, double-gang, or 4-inch square electrical junction boxes when installed with the appropriate mounting plate.

Technical Specifications Overview

• Brand: Simplex (Johnson Controls)

• Model: 49VO-APPLW

• Product Type: Addressable Wall-Mount Visible-Only Strobe (Appliance Only)

• Product Family: TrueAlert ES / 49VO Series

• Circuit Type: IDNAC Signaling Line Circuit (SLC)

• Nominal IDNAC Voltage: Regulated 29 VRMS

• Strobe Flash Rate: 1 Hz synchronized

• Selectable Candela Settings: 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, 185 cd

• Light Source: Xenon Strobe Tube

• Housing Material: High-impact, flame-retardant thermoplastic

• Wiring Terminal Size: 18 AWG to 12 AWG

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Operating Humidity Range: 10% to 93% RH (non-condensing) at 104°F (40°C)

• Dimensions (with cover): 5⅛ in. H × 5 in. W × 2⅝ in. D (130 mm × 127 mm × 67 mm)

• Required Accessories: Mounting plate and cover (ordered separately)

• Agency Compliance: UL Listed, ULC Listed, CSFM Listed

Conclusion

The Simplex 49VO-APPLW TrueAlert ES Wall Mount Addressable Strobe delivers visible notification for compatible Simplex fire alarm systems. Its multi-candela settings, 29 VRMS IDNAC circuit operation, addressable supervision, diagnostic LED, and compliance with UL/ULC standards support reliable life safety performance across commercial and institutional facilities.
