Description

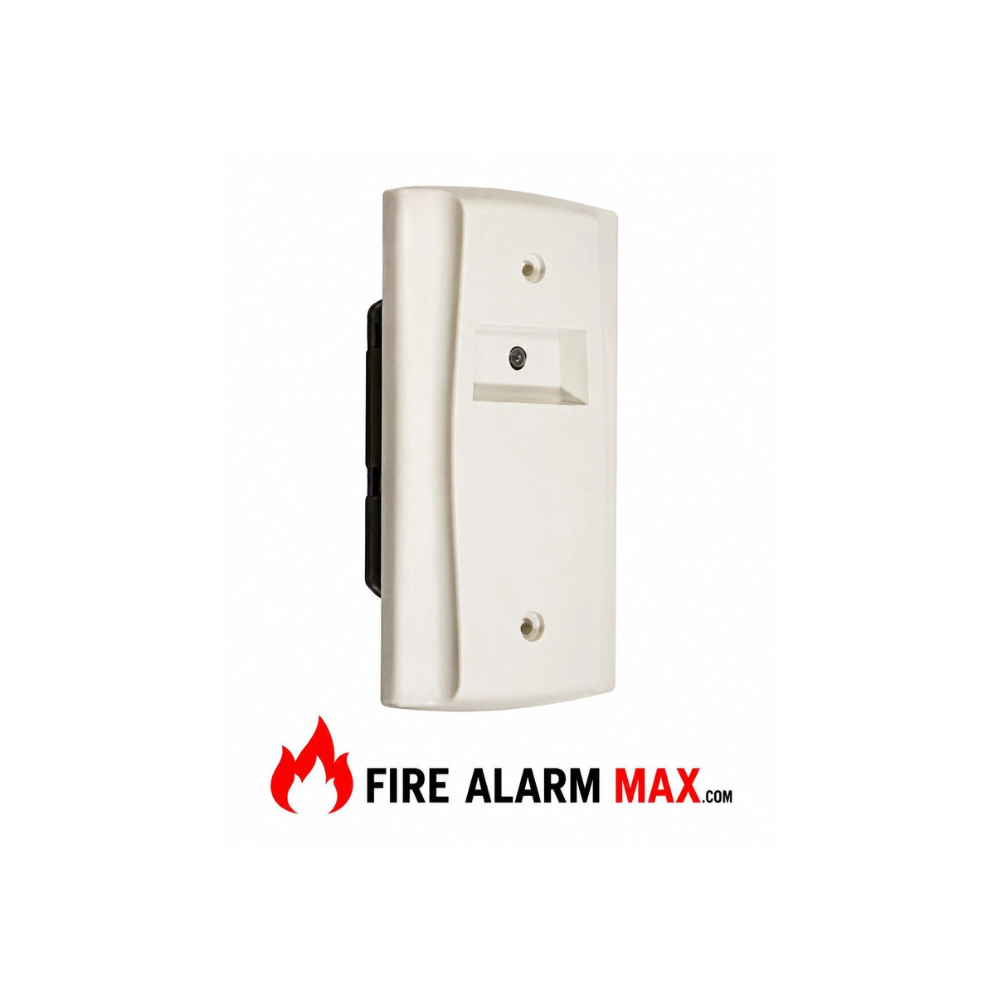

Product Name: System Sensor RA100ZA Remote Annunciator Price in BD Bangladesh
Brand / Manufacturer: System Sensor (Honeywell)
Product Overview
The System Sensor RA100ZA functions as a polarized remote LED annunciator for compatible conventional and intelligent fire alarm systems. When a paired detector initiates an alarm, its red LED provides clear visual indication.
Furthermore, the unit incorporates an active current regulator to manage current draw across its specified operating voltage range. Additionally, technicians mount the RA100ZA to a standard single-gang electrical outlet box. Consequently, this design helps facility personnel and emergency responders identify active alarm points quickly.
Key Features
-
Visual Alarm Annunciation: Illuminates a red LED whenever an activated detector triggers an alarm.
-
Dual-System Compatibility: Supports both conventional and intelligent fire alarm system configurations.
-
Active Current Regulation: Limits maximum current draw to $10\text{ mA}$ when operating within specified voltage ranges.
-
Conventional System Jumper: Requires installers to place the supplied jumper over the designated pins when connecting to compatible System Sensor conventional systems.
-
Single-Gang Mount: Fits directly onto a single-gang electrical outlet box.
Installation & Wiring Details
-
Polarized Field Wiring: Accepts 18 AWG to 12 AWG field wiring connections while maintaining correct circuit polarity.
-
Jumper Configuration: Installers must slide the provided jumper over the designated pins for conventional system operation.
-
Single-Gang Enclosure Mounting: Secures directly onto a standard single-gang electrical outlet box in accordance with applicable codes.
Technical Specifications Overview
-
Brand: System Sensor (Honeywell)
-
Model: RA100ZA
-
Product Type: Remote LED Annunciator
-
Conventional System Voltage Range: $3.1\text{ VDC}$ to $32\text{ VDC}$
-
Intelligent System Voltage Range: $18\text{ VDC}$ to $32\text{ VDC}$
-
Maximum Alarm Current: $10\text{ mA}$ maximum
-
Visual Indicator: Red LED
-
Wire Gauge Range: 12–18 AWG
-
Mounting Target: Single-gang electrical outlet box
Conclusion
The System Sensor RA100ZA Remote Annunciator provides visual alarm indication for paired fire alarm initiation devices. In addition, its active current regulator ($10\text{ mA}$ max), specified operating voltage ranges ($3.1\text{–}32\text{ VDC}$ conventional / $18\text{–}32\text{ VDC}$ intelligent), and single-gang outlet box mounting support structured life safety installations
